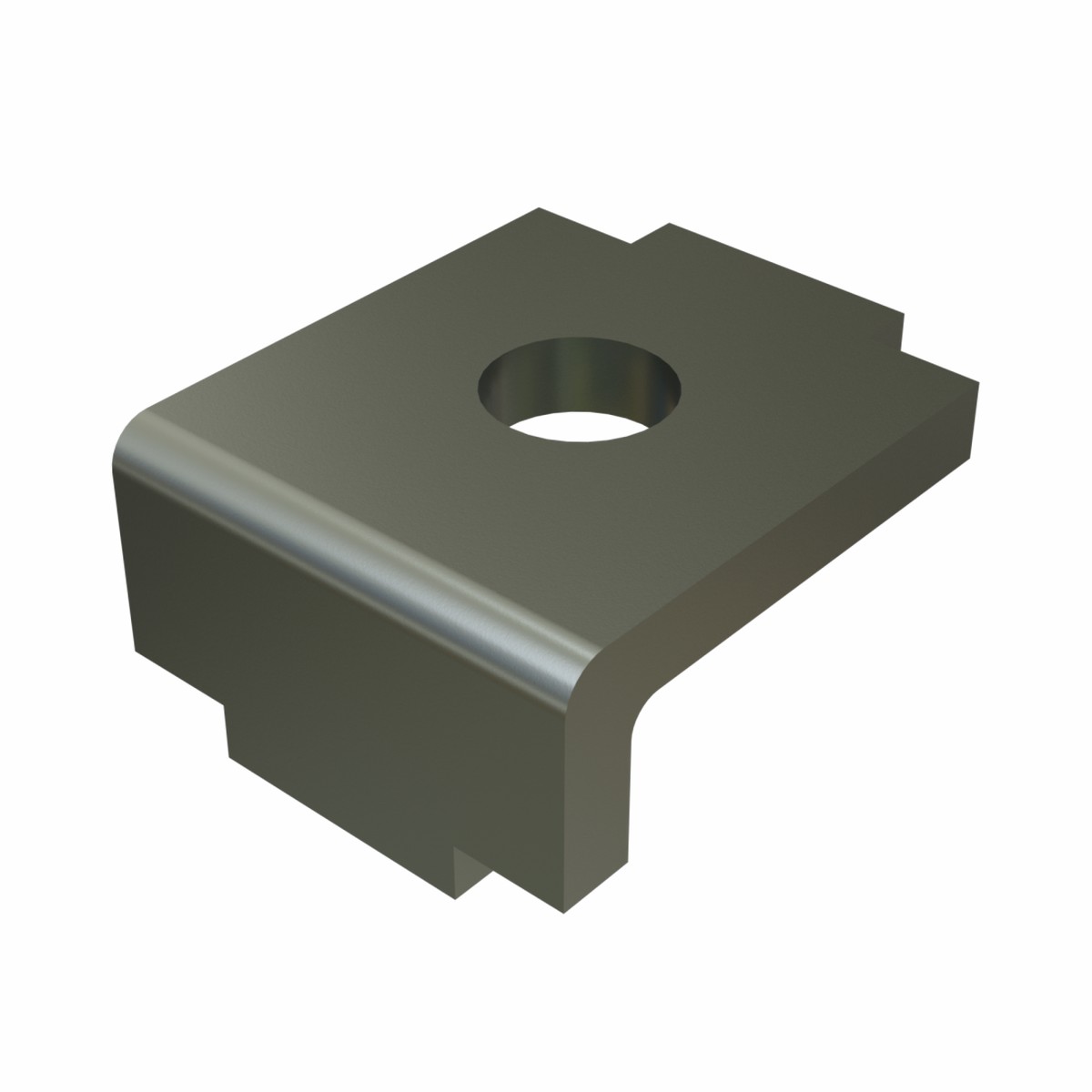

Description
Features:
- For use with 13/16″ wide channel
- Holes for 3/8″ fasteners
- EG coated for corrosion protection
Specifications
General Specifications – 13/16″ System
Standard Dimensions:
- Hole Diameter:9/32″ (7.1mm)
- Hole Spacing (From End):13/32″ (10.3mm)
- Hole Spacing (On-Center): 11/16″ (27.0mm)
- Width:13/16″ (20.6mm)
- Thickness:1/8″ (3.2mm)
Materials & Finishes – Fittings
Materials & Finishes-Standard:
- Base Metal:Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
- Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1
- Unistrut Defender (DF): Conforms to ASTM A1059
- Hot Dip Galvanized (HG): Conforms to ASTM A123 or A153
- Perma-Green (GR): Conforms to commercial standards for powder coating
- Perma-Gold (ZD): Conforms to ASTM B633, Type II SC1 or SC3
- Plain (PL): No finish
Materials & Finishes– Special Metals:
- Stainless Steel, Type 304 (SS): Conforms to ASTM A240 or A276, Type 304 *
- Stainless Steel, Type 316 (ST): Conforms to ASTM A240 or A276, Type 316 *
- Aluminum (AL): Conforms to ASTM B209, Type 1100F or 5052-H32 *
* These materials have different physical properties and performance characteristics. Pleasecontact usfor design support.
Downloads
P6386 Cut Sheet
P6386 Fitting BIM Model
