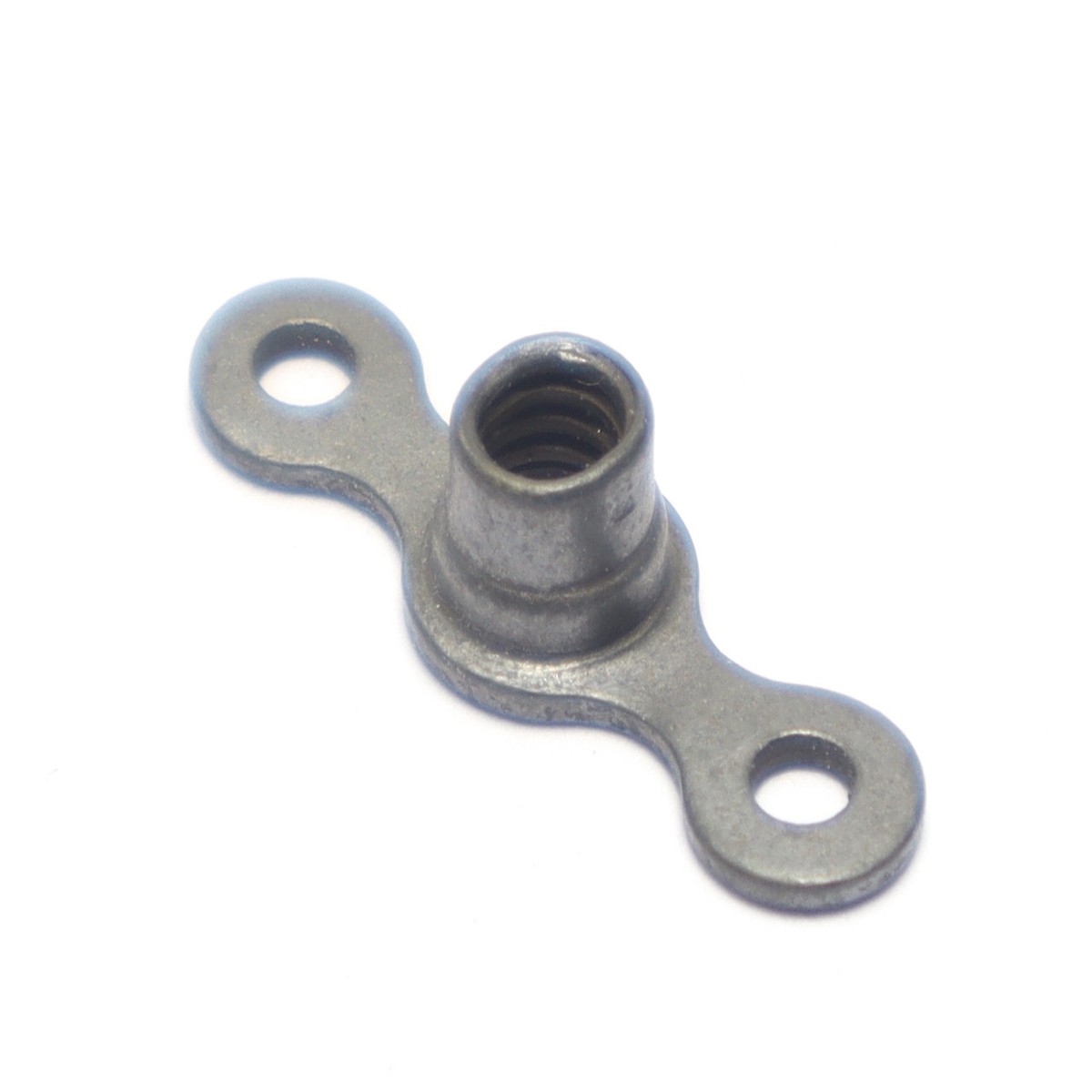

MS21047L08 8-32 Self Locking Nutplate, 45pc

Description

MS21047L08 8-32 Self Locking Nutplate, 45pcCondition:* New surplus stock, no OEM packaging. As pictured. Additional Notes:* Thread Class: 3b* Tempurature Rating: 450.0 degrees fahrenheit* Surface Treatment Specification: Qq-p-416 federal specification single treatment response* Surface Treatment: Cadmium* Plate Width: Between 0.277 inches and 0.297 inches* Plate Thickness: 0.047 inches* Nut Style: Plate* Nut Length: 0.948 inches* Nut Mounting Provision: Straight holes* Nut Height: 0.250 inches* Nut Counterbore Depth: 0.062 inches nut* Mounting Hole Diameter: Between 0.098 inches and 0.103 inches* Material: Steel* Mounting Hole Arrangement Style: 2 holes* Hardness Rating: 49.0 rockwell c* Locking Feature: Prevailing torque all metal design* Lubrication: Dry film lubricant* Distance From Aperture Center To Mounting Hole Center: Between 0.339 inches and 0.349 inches* Counterbore Diameter: 0.168 inches nut* Center To Center Distance Between Mounting Holes Along Length: Between 0.686 inches and 0.690 inches* Thread Direction: Right-hand* Thread Qty Per Inch (tpi): 32* Thread Series: Unjc* Thread Size: 0.164 inchesUNKMS21047L08
