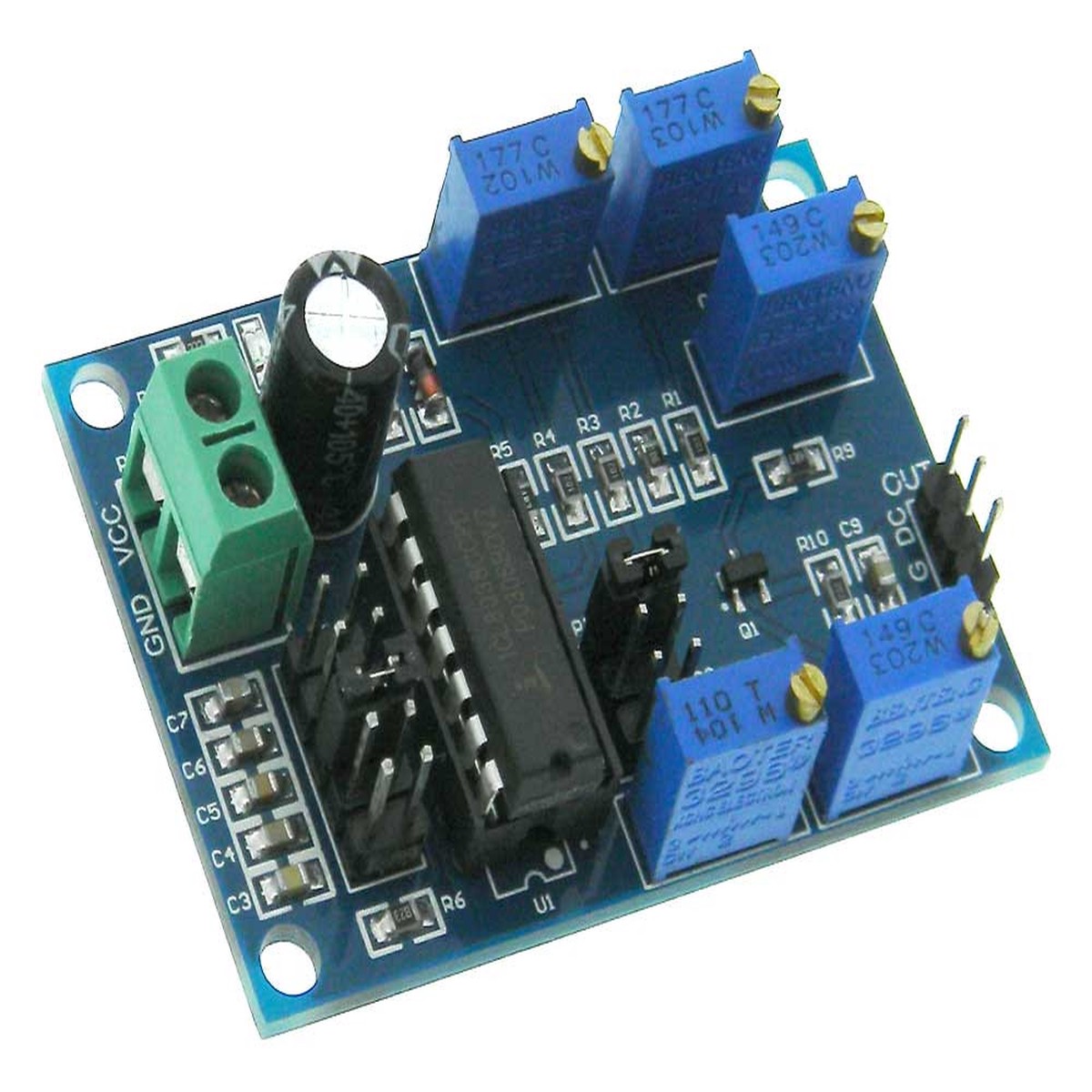

Waveform Generator Module 8038

Description

Waveform Generator Module 8038 Condition:* New Surplus Stock, In OEM Packaging. As Pictured.Additional Notes:* Handy module that generates selectable Sine, Square or Trianglar waveforms.* Power: 12-15 Volt DC* Adjustable Output Level* Distortion: 1% Sine Wave* Square Wave Duty Cycle Adj. 2-98%* Triangle Wave Linearity: 0.1%* Range: 10-450 KHz in 5 Jumper Selectable Overlapping Ranges: ~10 Hz-450 Hz ~90 Hz-1.5 KHz ~940 Hz-15 KHz ~6 KHz-120 KHz ~20 KHz-450 KHz* Adjustment Pot For Fine Frequency Adj.* AC & DC Coupled Outputs* Power LED* Output: Header Pins 0.1 Pitch* Power: Terminal Strip* L: 2-5/32″ x W: 1-1/2″ x H: 3/4″MPJA34670
