Description
Features:
- Design Load: 20 – 100 lbs [0.09 – 0.44 kN] per table
- Wheel bearings should not be lubricated
- Mounting hole for 1/4″ fastener
Design Loads
| Design Loads- P2750 | |
|---|---|
| Part Number | Design Load lbs (kN) |
| P2750 | 100 (0.44) |
| P2750N | 20 (0.09) |
Notes:
- Design loads only apply to Unistrut brand products. Look for “UNISTRUT” on the part.
- Safety factor = 2.5based on the ultimate strength of the connection when mounted to 12 gauge channel.
Specifications
General Specifications
- Do not lubricate
Materials & Finishes
- Electrogalvanized (EG)
- Stainless Steel (SS)
- “N” indicates Acetal wheels
Downloads
P2750 Cut Sheet

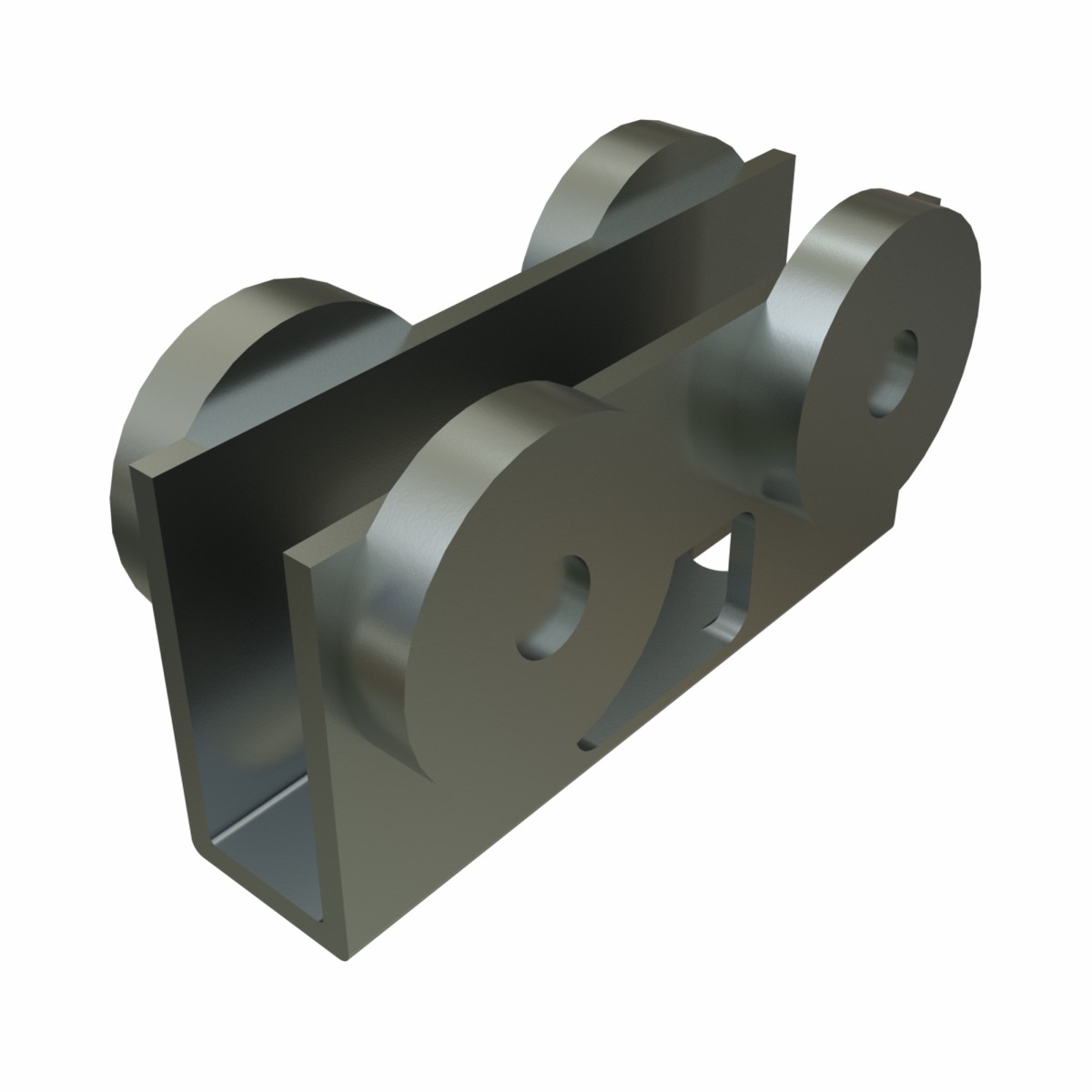

P2750 4 Wheel Trolley BIM Model
