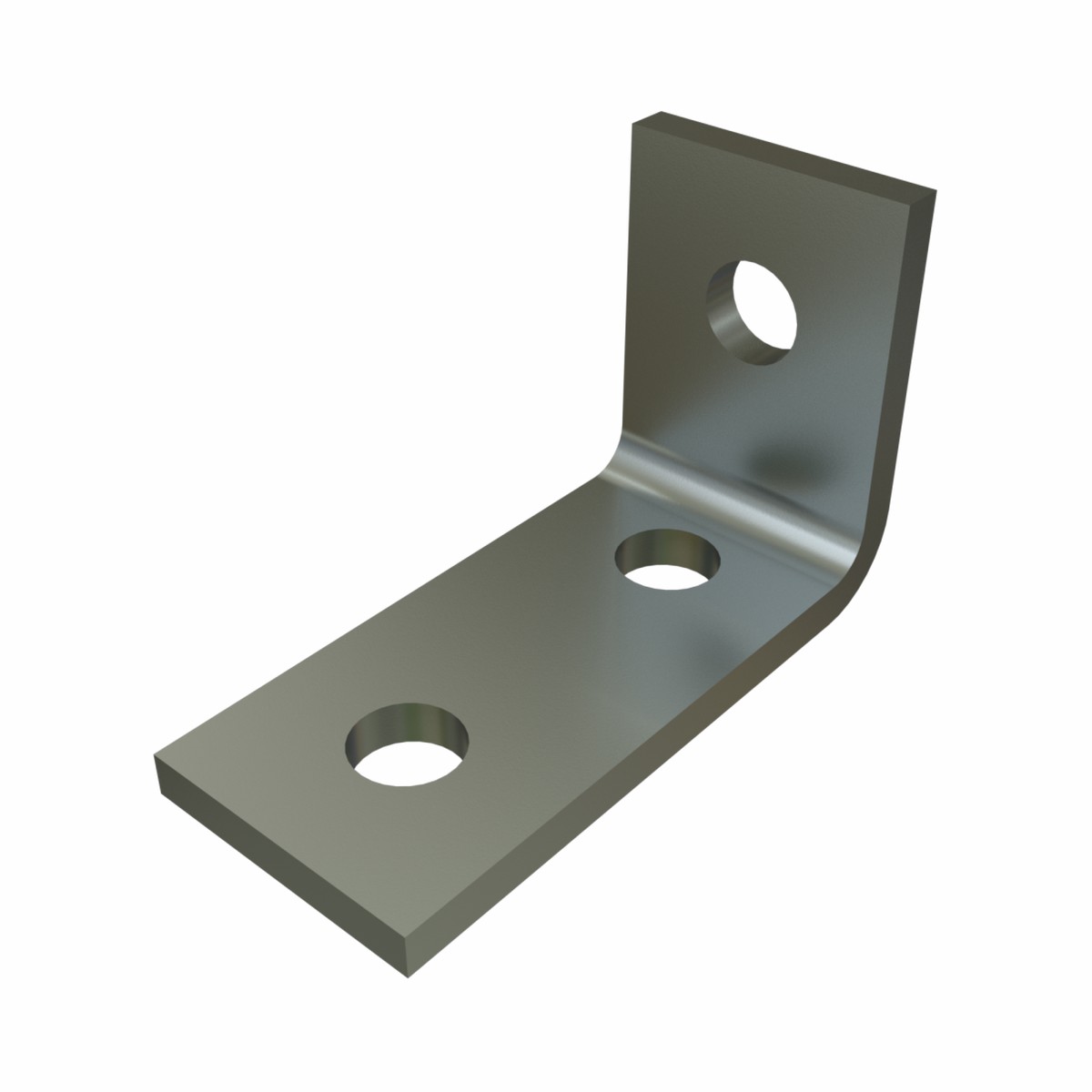

Unistrut P1458 – 3 Hole, 90 Fitting

Description

Features:

• Steel: ASTM A1011 SS GR 33
• Holes for 1/2″ fasteners
• Variety of material and finish options

Brands Available:

• Unistrut

Design Loads

(See image)

Notes:

1. Design loads only apply to Unistrut brand products. Look for “UNISTRUT” on the part.
2. Both ends of beam must be supported.
3. Load data is based on a P1010 nut and1/2″ bolt.
4. Safety factor = 2.5based on ultimate strength of connection.

Specifications

General Specifications

Standard Dimensions(Unless Shown Otherwise on Drawing):

• Hole Diameter:9/16″ (14mm)
• Hole Spacing (From End):13/16″ (21mm)
• Hole Spacing (On-Center): 17/8″ (48mm)
• Width: 15/8″ (41mm)
• Thickness:

• 1/4″ (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
• 0.220″ (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45

Note:

• When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.

Materials & Finishes

Materials & Finishes-Standard:

• Base Metal:Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
• Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1
• Unistrut Defender (DF): Conforms to ASTM A1059
• Hot Dip Galvanized (HG): Conforms to ASTM A123 or A153
• Perma-Green (GR): Conforms to commercial standards for powder coating
• Perma-Gold (ZD): Conforms to ASTM B633, Type II SC1 or SC3
• Plain (PL): No finish

Materials & Finishes– Special Metals:

• Stainless Steel, Type 304 (SS): Conforms to ASTM A240 or A276, Type 304 *
• Stainless Steel, Type 316 (ST): Conforms to ASTM A240 or A276, Type 316 *
• Aluminum (AL): Conforms to ASTM B209, Type 1100F or 5052-H32 *

* These materials have different physical properties and performance characteristics. Pleasecontact usfor design support.

Downloads

P1458 Cut Sheet

P1458 3 Hole 90 Fitting BIM Model

P1458 Design Load Report
