Description

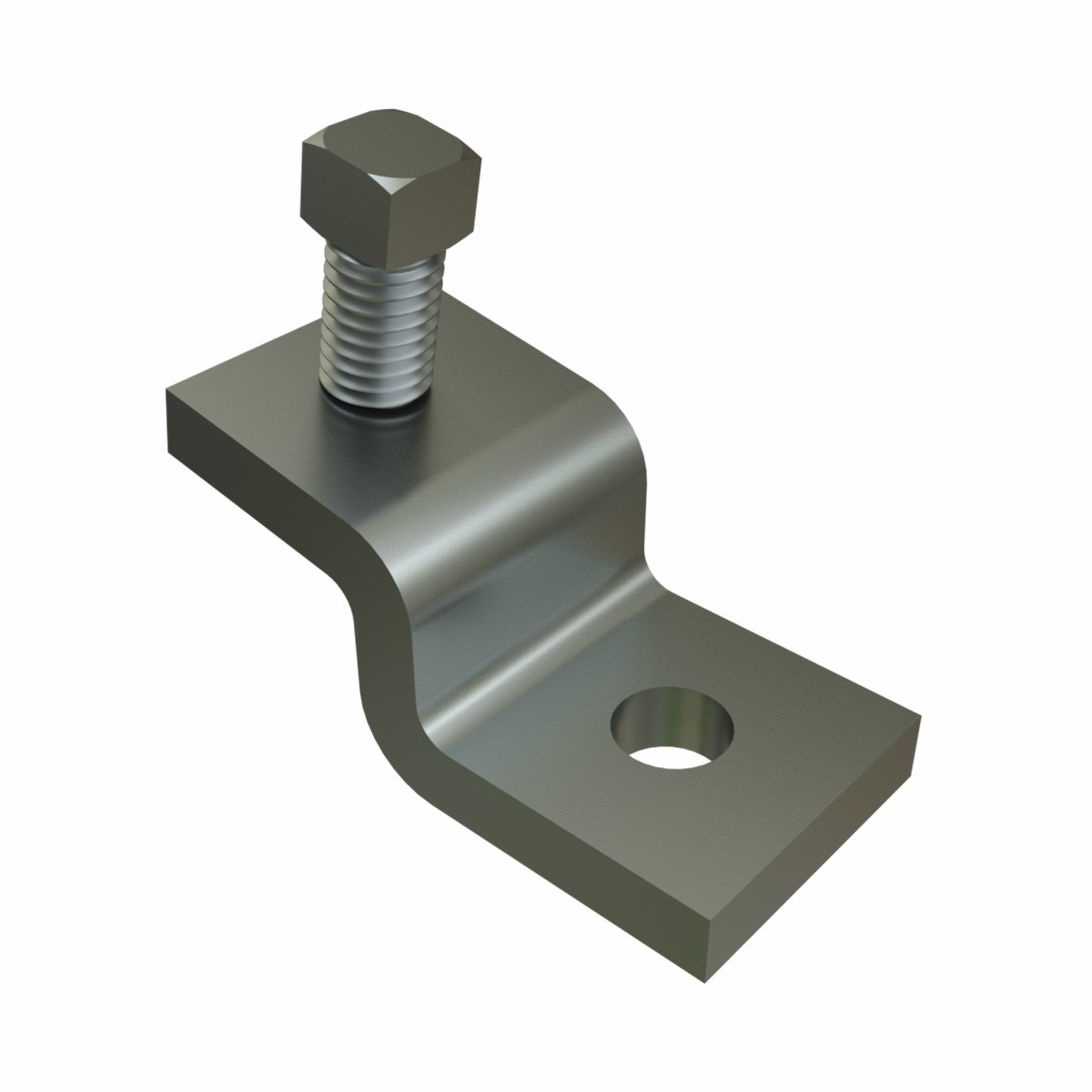

Beam Clamp P1379S beam clamp is designed to be used to clamp Unistrut channel perpendicular to the beam.
Features:
- Vertical Design Load: Per table. Must use in pairs.
- Use with 12 or 14 ga. channel
- Set screw included. 1/2″ screw and channel nut required for channel attachment.
- This series is available in Electrogalvanized (EG) and Hot-Dip Galvanized (HG).
Brands Available:
- Unistrut
Design Loads
| Design Loads- P1379S | |
|---|---|
| ChannelStyle | Design Load Each (Use in Piars Only) lbs (kN) |
| P1000 | 600 (2.67) |
| P1100 | 500 (2.22) |
| P2000 | 450 (2.00) |
Notes:
- Design loads only apply to Unistrut brand products. Look for “UNISTRUT” on the part.
- Use in pairs only.
- Safety factor = 2.5based on ultimate strength of connection.
- Set Screw Installation Torque: 125 in-lbs (14 N-m)
Specifications
General Specifications
Standard Dimensions(Unless Shown Otherwise on Drawing):
- Hole Diameter:9/16″ (14mm)
- Hole Spacing (From End):13/16″ (21mm)
- Hole Spacing (On-Center): 17/8″ (48mm)
- Width: 15/8″ (41mm)
- Thickness:
- 1/4″ (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
- 0.220″ (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45
Note:
- When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.
Materials & Finishes
Materials & Finishes-Standard:
- Base Metal:Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
- Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1
- Unistrut Defender (DF): Conforms to ASTM A1059
- Hot-Dipped Galvanized (HG): Conforms to ASTM A123 or A153
- Perma-Green (GR): Conforms to commercial standards for powder coating
- Perma-Gold (ZD): Conforms to ASTM B633, Type II SC1 or SC3
- Plain (PL): No finish
Materials & Finishes– Special Metals:
- Stainless Steel, Type 304 (SS): Conforms to ASTM A240 or A276, Type 304 *
- Stainless Steel, Type 316 (ST): Conforms to ASTM A240 or A276, Type 316 *
- Aluminum (AL): Conforms to ASTM B209, Type 1100F or 5052-H32 *
* These materials have different physical properties and performance characteristics. Pleasecontact usfor design support.
