Description

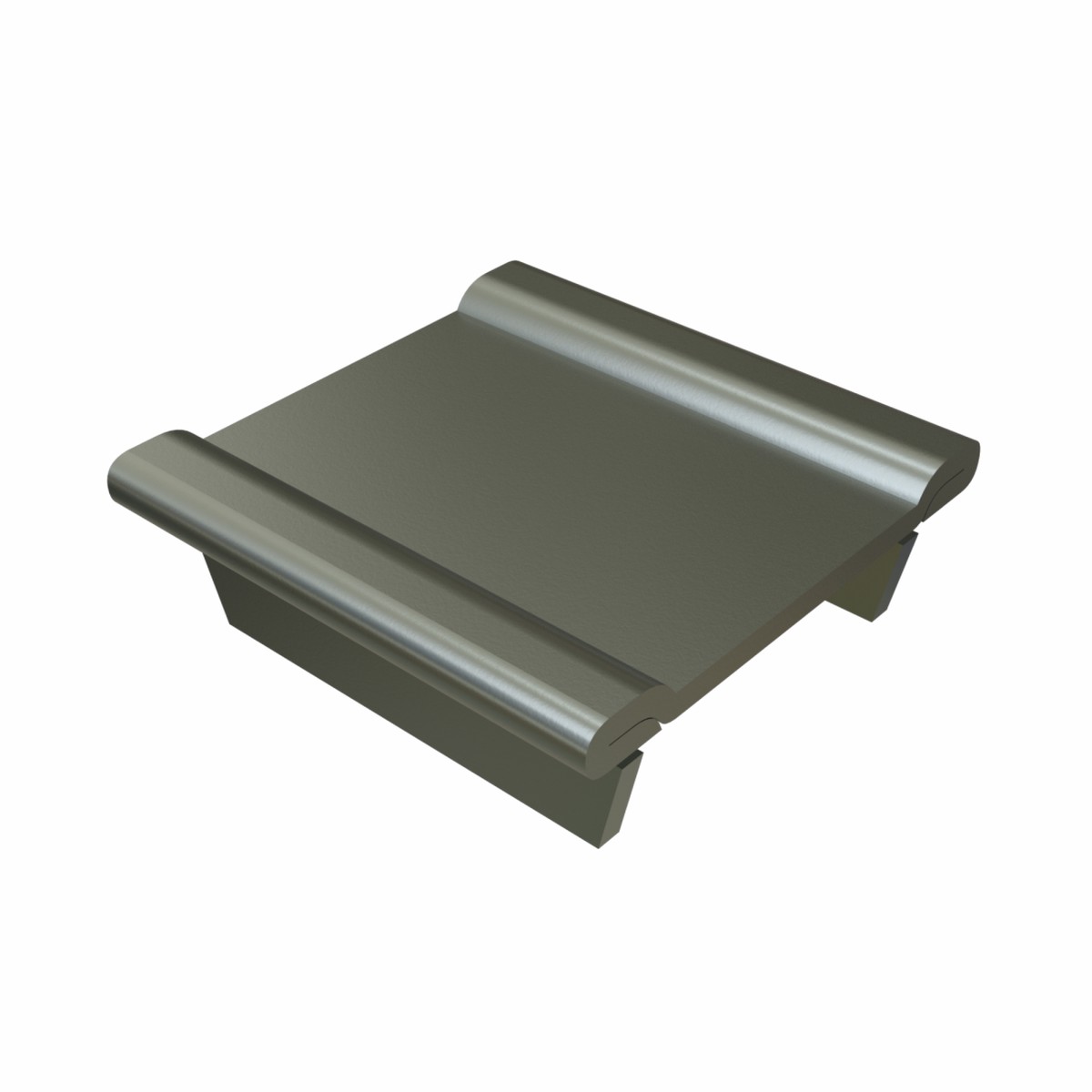

End Cap is designed to press into Unistrut’s P1000 strut channel. This product can be used to cover sharp or unprotected cut ends, or to cover the end of the channel for any other purpose.
Features:
- Use with P1000
- Material: 0.060″ (1.5)
- EG coated for corrosion protection
Brands Available:
- Unistrut
Specifications
General Specifications – Fittings
Standard Dimensions(Unless Shown Otherwise on Drawing):
- Hole Diameter:9/16″ (14mm)
- Hole Spacing (From End):13/16″ (21mm)
- Hole Spacing (On-Center): 17/8″ (48mm)
- Width: 15/8″ (41mm)
- Thickness:
- 1/4″ (6.4mm) with steel meeting or exceeding ASTM A1011 SS GR 33, or
- 0.220″ (5.6mm) with steel meeting or exceeding ASTM A1011 HSLAS GR 45
Note:
- When used for mechanical supports, load capacities of brackets and fittings should be in compliance with the American Standard Code for Pressure Piping.
Materials & Finishes – Fittings
Materials & Finishes-Standard:
- Base Metal:Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
- Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1
- Unistrut Defender (DF): Conforms to ASTM A1059
- Hot Dip Galvanized (HG): Conforms to ASTM A123 or A153
- Perma-Green (GR): Conforms to commercial standards for powder coating
- Perma-Gold (ZD): Conforms to ASTM B633, Type II SC1 or SC3
- Plain (PL): No finish
Materials & Finishes– Special Metals:
- Stainless Steel, Type 304 (SS): Conforms to ASTM A240 or A276, Type 304 *
- Stainless Steel, Type 316 (ST): Conforms to ASTM A240 or A276, Type 316 *
- Aluminum (AL): Conforms to ASTM B209, Type 1100F or 5052-H32 *
* These materials have different physical properties and performance characteristics. Pleasecontact usfor design support.
Downloads
P1280 Cut Sheet
P1280 End Cap BIM Model
