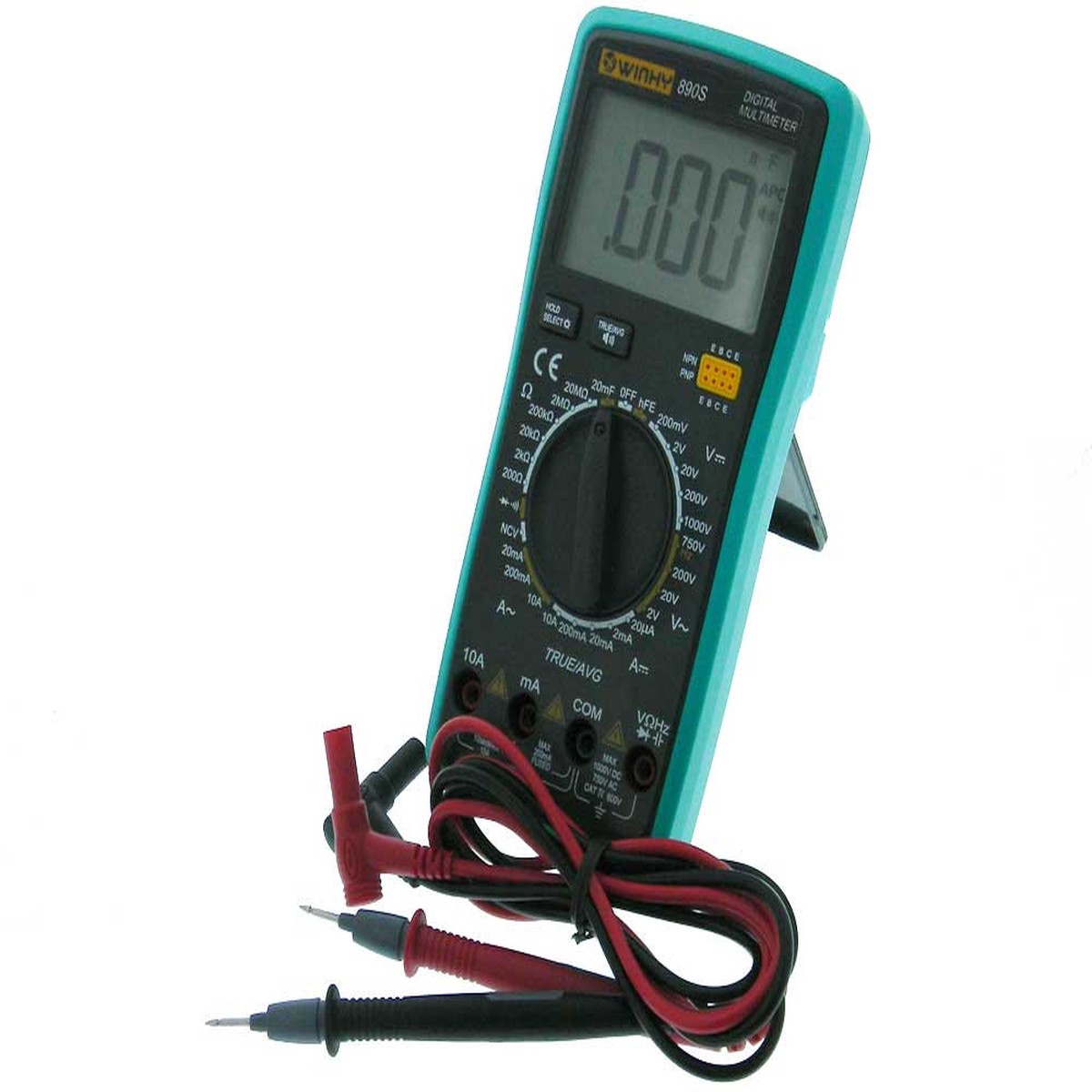

Talking Digital Multimeter

Description

Talking Digital Multimeter Additional Notes:* Not recommended for the visually impaired* Talking, High tech. 10 function, Backlit, 3-1/2″ digit hand held meter with 1″ LCD display.* True RMS/Average Measurement Selection* 9V battery not included, test leads, instructions* Fuse Overload protection.* CE listed; IEC 1010 Cat III-1000V Compliant* NOTES: 1: To Turn OFF Voice; Press and Hold (~3sec.) “TRUE/AVG” Button 2: To Read Frequency: Select 750VAC Range- PressHOLD/SELECT” 3: To Turn on Backlight: Press & Hold (~3sec.) “HOLD/SELECT” Button; Backlight will turn off after ~10seconds 4: Meter is Auto Off will turn off after ~20minSpecifications* DC VOLTS & CURRENT Volts: .2,2,20,200,1000V Accuracy: .5% + 3 Counts on 200mV-200V .8% + 10 Counts 1000VDC Current: 20uA, 2mA, 20mA, 200mA,10A Accuracy: .8% + 10 Counts on 20ua & 2mA 2% + 30 Counts on 20mA-10A* AC VOLTS (RMS/AVG) Frequency Response: Sine/Triangle: 40Hz-1KHz Other Waveform: 40Hz-200Hz Volts: .2,2,20,200,750V Accuracy: .8% + 5 Counts on .2-200V 1.2% +10Counts on 750V Current: 20mA, 200mA, 10A Accuracy: 2% + 30 Counts* RESISTANCE Ranges: 200,2K,20K,200K,2M,20M Ohms Accuracy: .8% + 5 Counts on 200 ohm .8% + 3 Counts on 2K-2M 1% + 25 Counts on 20M* CAPACITANCE Ranges: 20nF, 200nF, 2uF, 20uF, 200uF, 2mF, 20mF Accuracy: 3.5% + 20 Counts on 20nF-20uF 5% + 10 Counts on 200uF-20mf* OTHER FUNCTIONS Frequency: <3KHz (Select 750VAC Range- Press Hold/Select Button Diode Test: ~3-4VDC open circuit hFE: ~1mA test current NCV: Near Field AC Beep Rate High for near/Low for far L: 7-1/4" W: 3-1/2 T: 1-7/8" MPJA35042 ME
