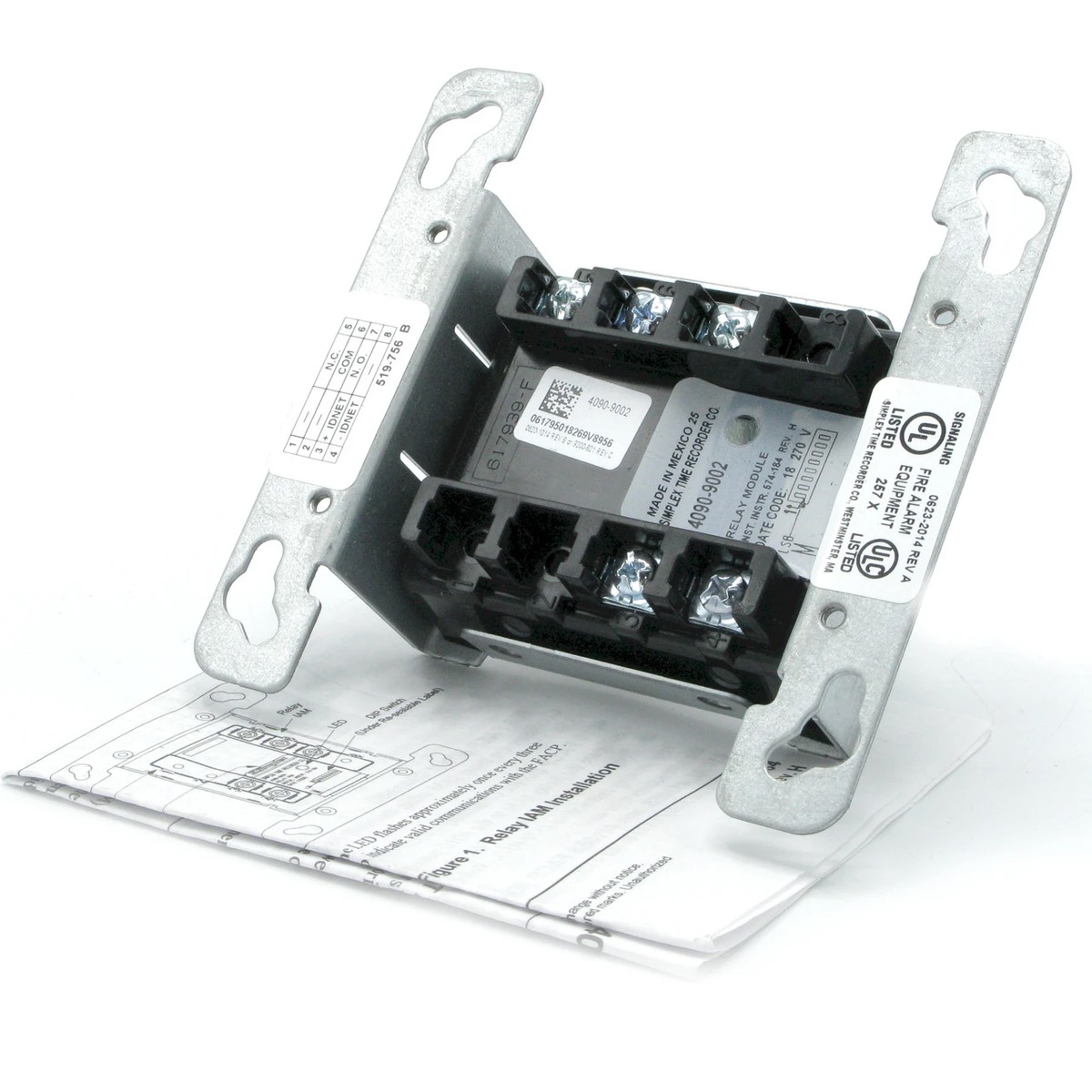

Simplex 4090-9002 IDNet Individual Addressable Relay Module

Description

Simplex 4090-9002, IDNet Individual Addressable Relay ModuleCondition:* New Stock, No OEM Packaging. As Pictured.Additional Notes:* IDNet addressable control for use with Simplex fire alarm control panel models 4007ES, 4008, 4010, 4010ES, 4100ES, and 4100U* A single addressable point provides control and status tracking of a Form C contact* Low power latching relay design allows IDNet communications to supply both data and module power* Relay is set to OFF on initial power up and upon loss of IDNet communications* Enclosed design minimizes dust infiltration* Mounts in standard 4 (102 mm) square electrical box, optional adapter bracket is available to mount in a 4 1116 (119 mm) square electrical box (not included)* Screw terminals for wiring connections* Visible LED flashes to indicate communications* Optional covers are available to allow LED to be viewed after installation * Communications: IDNet Communications, 1 Address Per Device* Relay IAM Power: Supplied By IDNet Communications * Contact Type: Form C, SPDT* Contacting Ratings: Power-Limited: 2 Amp @ 24 Volt DC, Resistive / 1 Amp @ 24 Volt DC, Inductive Nonpower-Limited: 0.5 Amp @ 120 Volt AC, Resistive* Not Rated For Incandescent SwitchingSimplex4090-9002
