Description

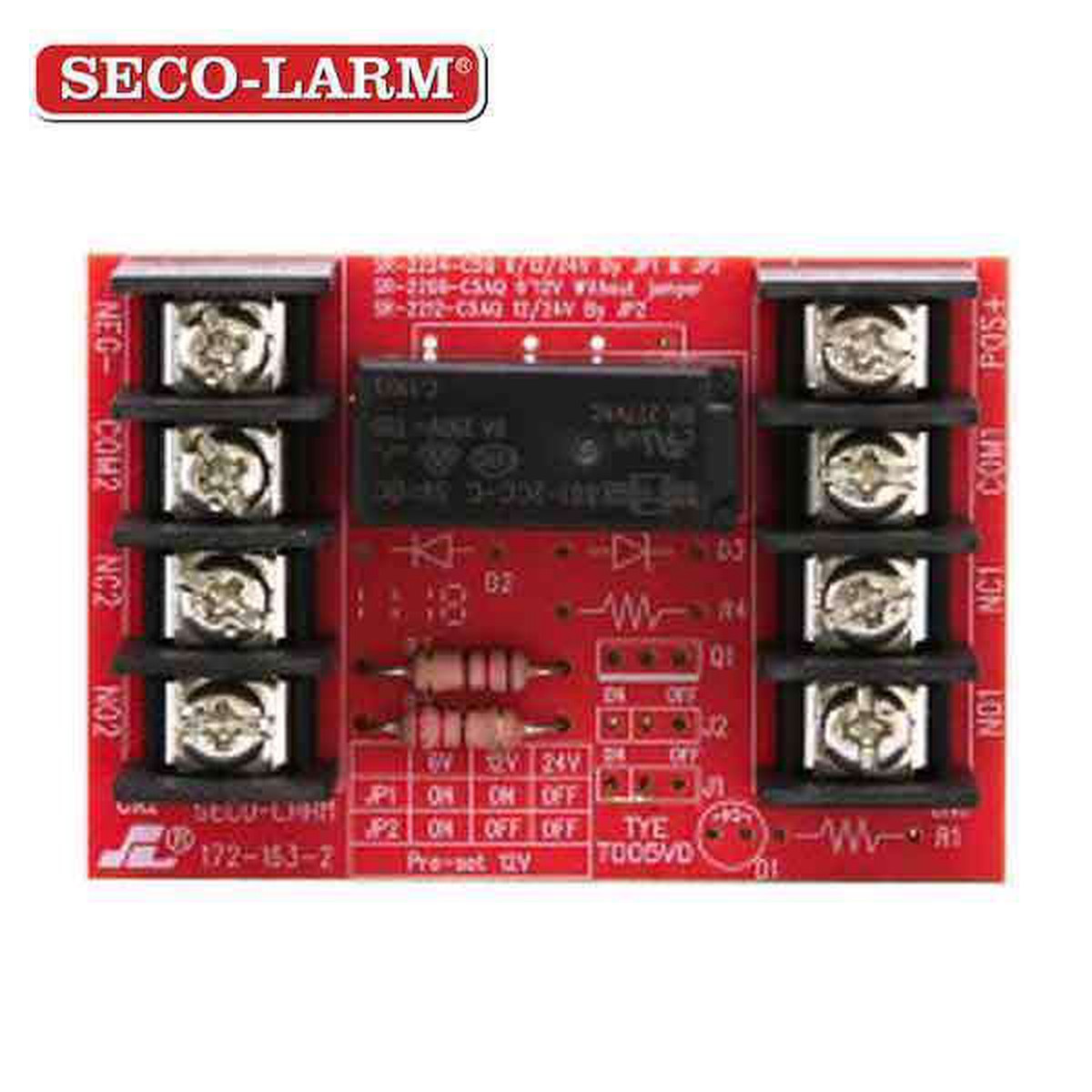

- 12/24VDC Trigger Voltage, One 5A Form C DPDT Relay
- For any application where relays are required
- Pre-wired to easy-to-install modules
- Screw terminals allow easy installation without soldering or other time-consuming connections
- Wide-selection of additional relays is available: Choose single or dual relays, low-current or heavy-duty operation, and high-sensitivity or normal-sensitivity
| Operating Voltage | 12/24 VDC |
| Trigger Voltage | 12/24 VDC |
| Voltage Selection | Jumper |
| Relay Type | DPDT |
| Relay Ratings | 5A |
| No. of Relays | 1 |
| Current Draw | 70mA@12/24VDC |
| Dimensions | 2-3/4″ x 1-7/8″ x 3/4″ (70 x 48 x 20 mm) |
| Weight | 2-oz (55g) |
