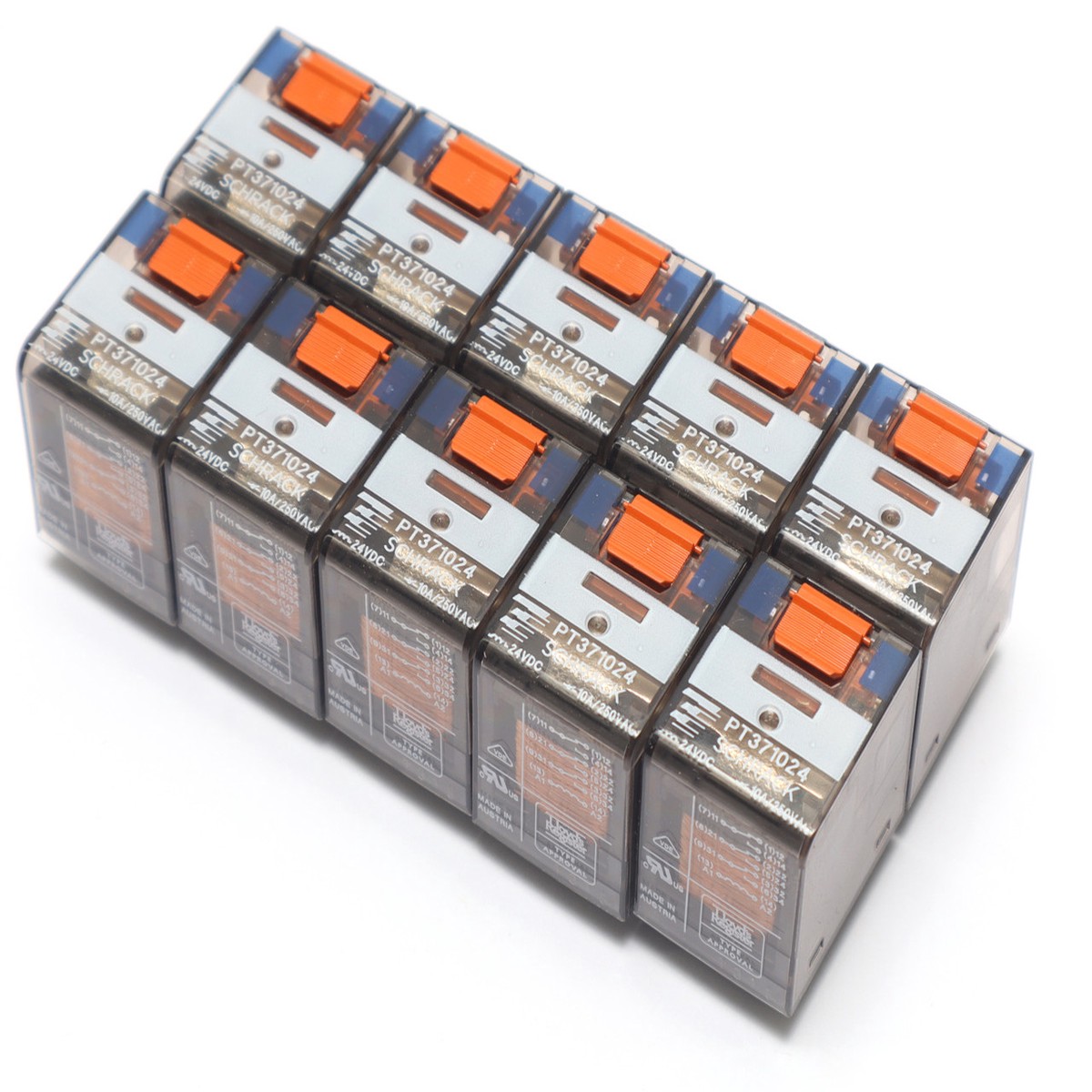

SCHRACK PT371024 Miniature Relay, 24VDC, 10pk

Description

SCHRACK PT371024, Miniature Relay, 24 Volt DC, 10 PackCondition:* New Surplus Stock, In OEM Packaging. As Pictured.Additional Notes:* Coil Special Features: UL Coil Insulation Class F* Contact Arrangement: 3 Form C 3PDT-CO* Contact Number of Poles: 3* Contact Limiting Breaking Current(A): 10 Amp* Coil Power Rating DC(W): .741 Watt* Coil Resistance(): 777 Ohm* Coil Voltage Rating(VDC): 24 Volt DC* Contact Current Rating(A): 10 Amp* Contact Switching Load (Min): 10 mA @ 12 Volt* Contact Switching Voltage (Max)(VAC): 400 Volt AC* Contact Voltage Rating(VAC): 240 Volt AC* Insulation Initial Dielectric Between Contacts & Coil(Vrms): 1200 Volt* Insulation Initial Dielectric Between Adjacent Contacts(Vrms): 2500 Volt* Contact Limiting Short-Time Current(A): 300 Amp* Contact Limiting Making Current(A): 20 Amp* Insulation Initial Dielectric Between Open Contacts(Vrms): 1200 VoltSCHRACK PT371024
