Description

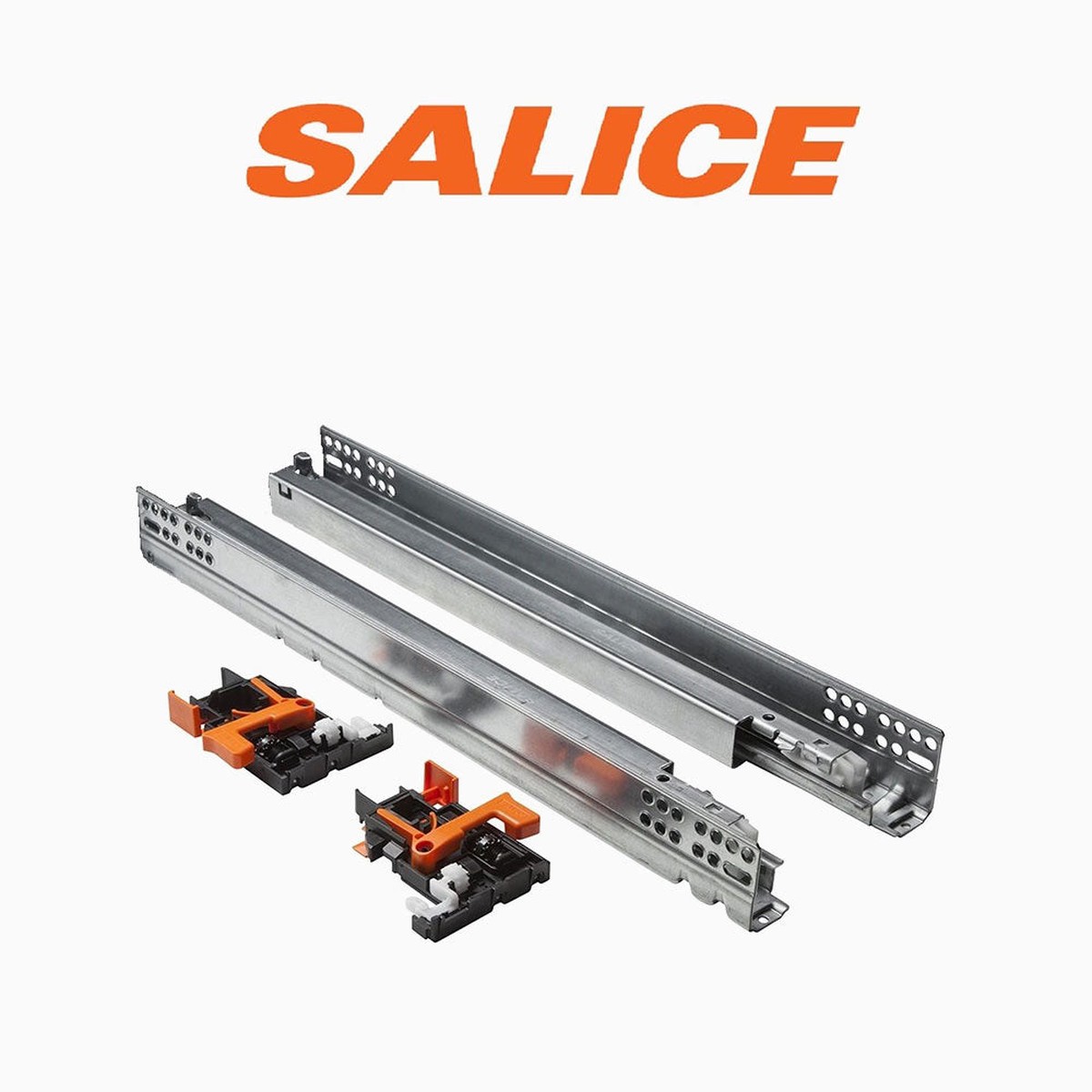

Salice Push to Open Undermount Slides with 6 Ways Adjustable Front Brackets
Notes: Prices are including a pair of adjustable brackets
Product features:
- Full-extension slides fixed to the drawer by clip
- Push opening system for handle-less drawers
- A slight pressure of the drawer front is sufficient for the drawer to self-open
- Load capacity: 75 LBS (34 Kg) dynamic/100 LBS (45 Kg) static – ANSI GRADE 1
- Safety system that prevents the drawers from turning over
- Drawer height adjustment +2.5 mm, side adjustment 1.5 mm depth adjustment 2 mm with clip A750.010
- The drawer is maintained parallel with the cabinet side during opening
- The drawer is held in the closed position
Aboutadjustable brackets:
- Align the gaps between fronts
- Align the fronts with the cabinet
- For all versions of full-extension runners
- Tool free 6 way adjustment, including
– Patented removal from the side or front of the drawer
– Height adjustment (+2.5 mm)
– Sideways adjustment (Left or Right) (1.5mm)
– Depth adjustment ( 2mm) - Carbon Fibre material for light weight, strength and rigidity
*Unit of measurement in millimeters (mm)
| Product Code | Slides Runner Length | Min. depth of the Cabinet (mm) |
| A65577/25 CP6 | 10″ (250mm) | 260 |
| A65577/27 CP6 | 11″ (270mm) | 280 |
| A65577/30 CP6 | 12″ (300mm) | 310 |
| A65577/35 CP6 | 14″ (350mm) | 360 |
| A65577/40 CP6 | 16″ (400mm) | 410 |
| A65577/45 CP6 | 18″ (450mm) | 460 |
| A65577/50 CP6 | 20″ (500mm) | 510 |
| A65577/55 CP6 | 22″ (550mm) | 555 |
| A65577/60 CP6 | 24″ (600mm) | 605 |
