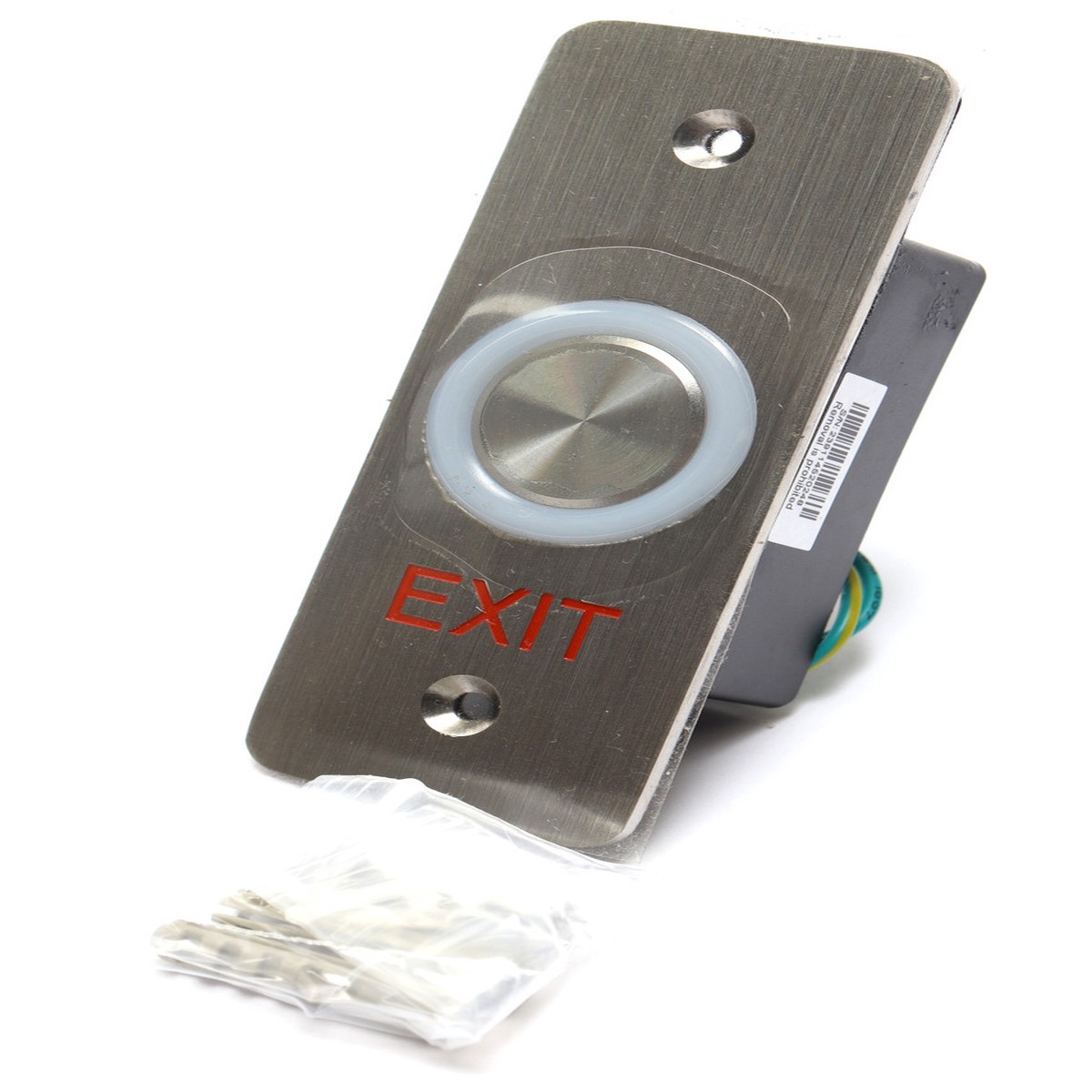

Rosslare Security EX-16 Narrow Weatherized Exit Button

Description

Rosslare Security EX-16 Narrow Weatherized Exit ButtonCondition: * New surplus stock, in OEM packaging. As pictured. Additional Notes:* Operating Voltage Range: 1024 VDC* Outputs: One dry contact relay with two separate outputs One Normally Open, One Normally Closed* Input Current, Max: 140 mA @ 24 VDC* Button Switch Lifespan: Over 1 Billion Cycles * Relay Expectancy: 100,000 @ 2A 30VDC 500,000 @ 1A 30VDC * Operating Environment Suitable for indoor and outdoor use (meets IP-65) * Operating Temperature Range -35C to 66C (-31F to 151F) * Operating Humidity Range 0 to 85% (non-condensing) * Advanced Soft Touch Piezoelectric Switch* New weatherproof design water and dust proof, grease, oil and other chemical solvent repellent* Circuit assembly encapsulation* Vandal resistant, stainless steel mounting plate and tactile button with no moving parts* Mounting Method Single Gang: Mounts directly to a US gang switchbox* Backed by Rosslares International Guarantee and service with ISO9001 (Certified TUV Rhineland) level business and manufacturing operations* Non-sparking, non-magnetic, corrosion resistant* Light ring status indicator and accidental activation hindrance* Adjustable output and LED indication time of 1 to 60 seconds* Output and indication Toggle option* Jumper Selectable Illumination Status: Red, Green, or No Illumination* One Relay with two 2.0 Amp outputs for separate application wiring: N.O. and N.C.Rosslare Security EX-16
