Description

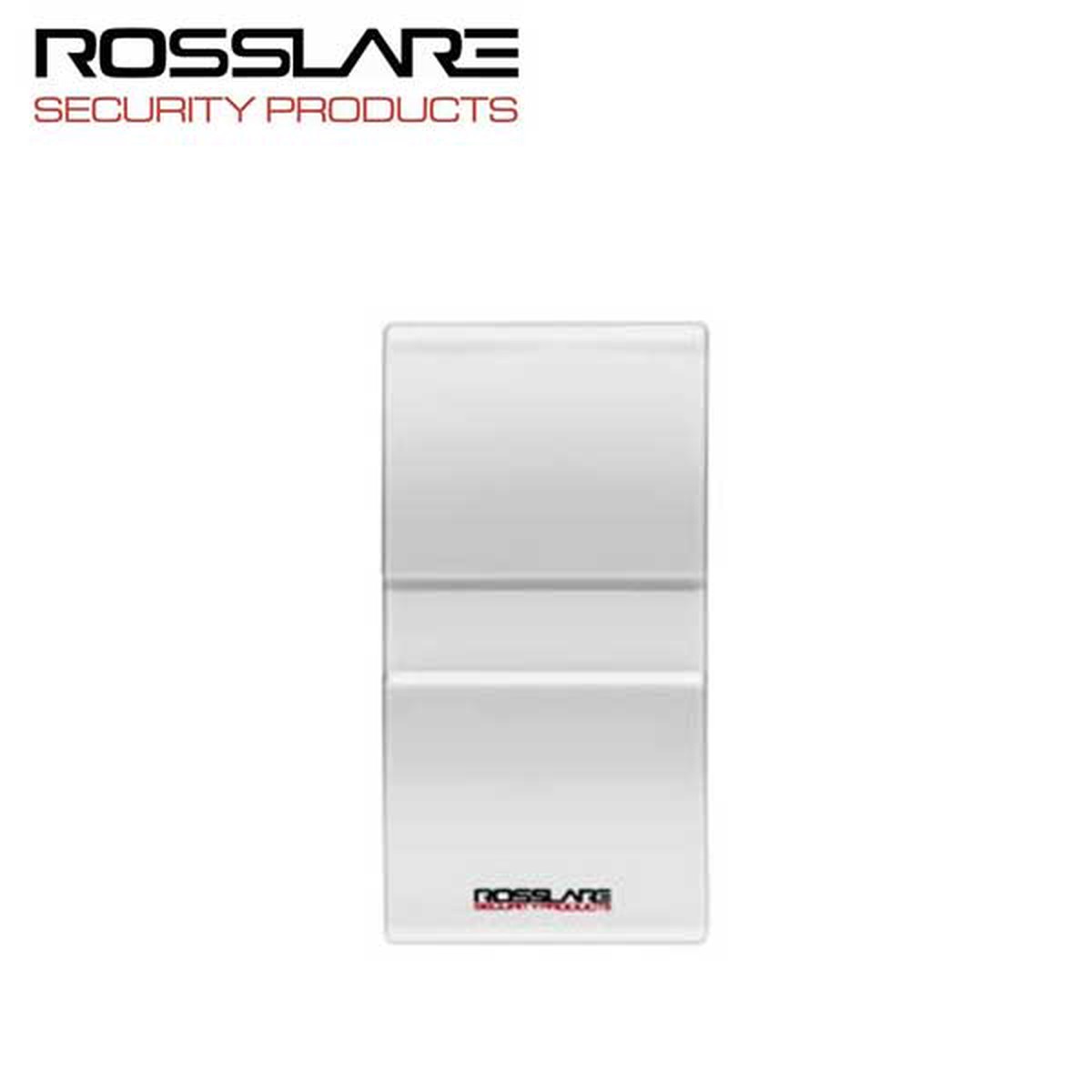

The MD-W11BP is an optional power backup unit for Wireless Access Control Interface includes BT-05 12V 800mAh Lead Acid Battery. The MD-W11BP is a Wireless Access Control Door Interface, is a quick, inexpensive solution for connecting remote door devices, such as readers, locks, and REX Buttons to an access control unit. The MD-W11BP Wireless Access Control Door Interface consists of two units per door, one located near the controller (the Near unit) and the other near the door (the Far unit).
| Input Voltage | 12-24 AC / 15-24 VDC |
| Battery Charger | 12V sealed Lead-Acid, up to 7Ah (Far Unit) |
| Input Current | Standby: 70mAh Max: 160mA |
| Max Range | 300 meters (985 feet) |
| Operating Environment | Indoor Use |
| Operating Temperature | -10C to 50C (14F to 122F) |
| Dimensions | 12.8 x 6.9 x 3.4 cm / 5.04 x 2.72 x 1.34 inch |
Downloads:
- Installation Instructions
