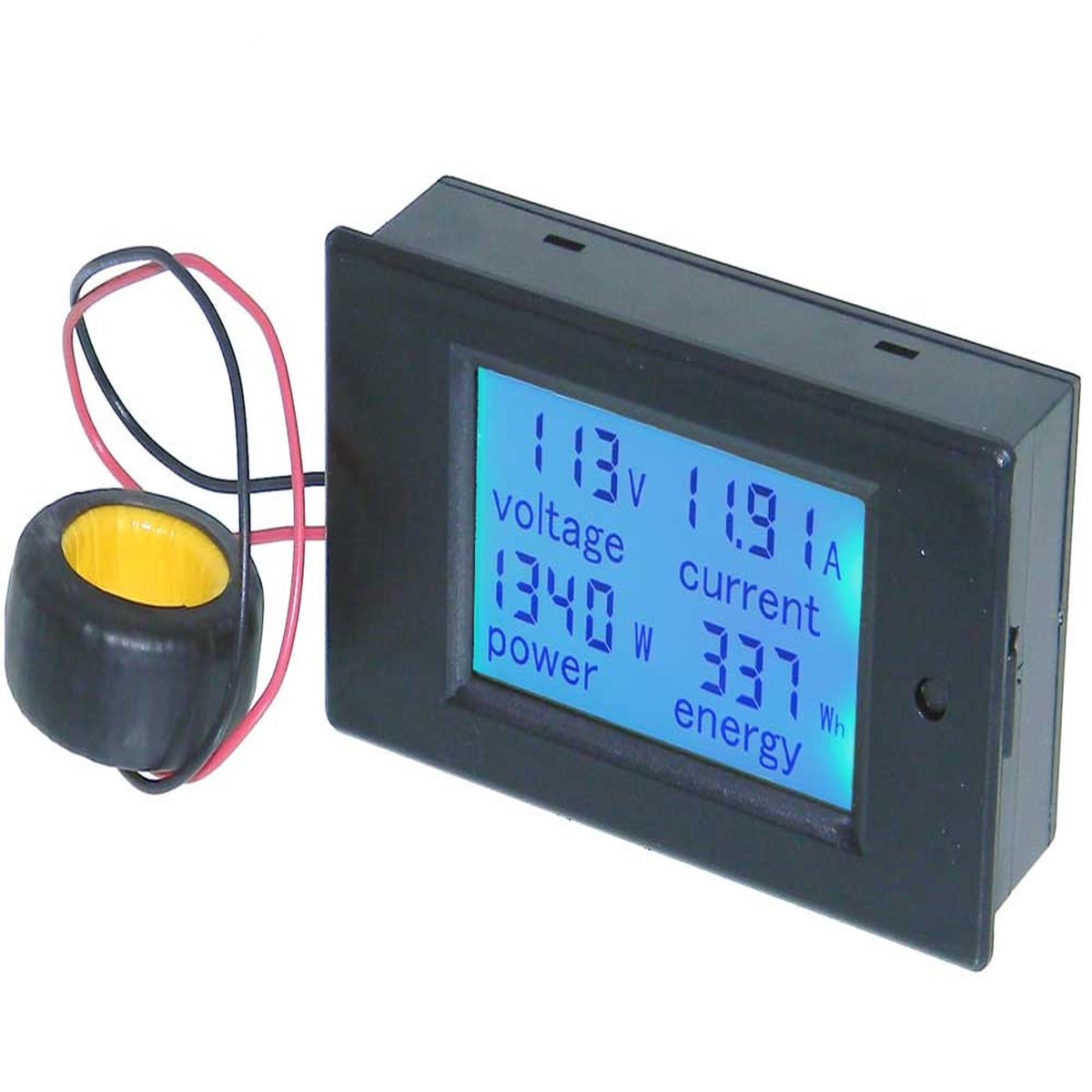

Panel Meter, Snap-in, Multi Function AC Volts, 100Amps and 22KW

Description

Panel Meter, Snap-in, Multi Function AC Volts, 100Amps and 22KWAdditional Notes: * Blue back-lit, Snap-in LCD panel meter that measures* AC Volts, Amps, Watts, Watt hours.* Adjustable Overload function (over power alarm threshold: Backlight Flashes.) Ideal for submetering and monitoring.* Terminal Strip for Connections & Back Cover.* External Current Transformer can be mounted remotely.* Input Voltage: 80-260VAC* Resolution: 1V* Input Range Amps: 0-99.99A* Resolution: Amps: .01* Watts: 0-22KWmax* Resolution: <1KW=0.1W, <10KW=1W, <22KW=100W* Energy Used: 0-9999KWh* Resolution: <10KWH=0-9999WH, >10KWH=9999KWH* Accuracy: +-1% +-1LSD* Current Transformer I/D: 15mm* Cutout: 84.6mm X 44.6mm* W: 3-9/16″ * H: 2″ * D: 1 MPJA32403 ME
