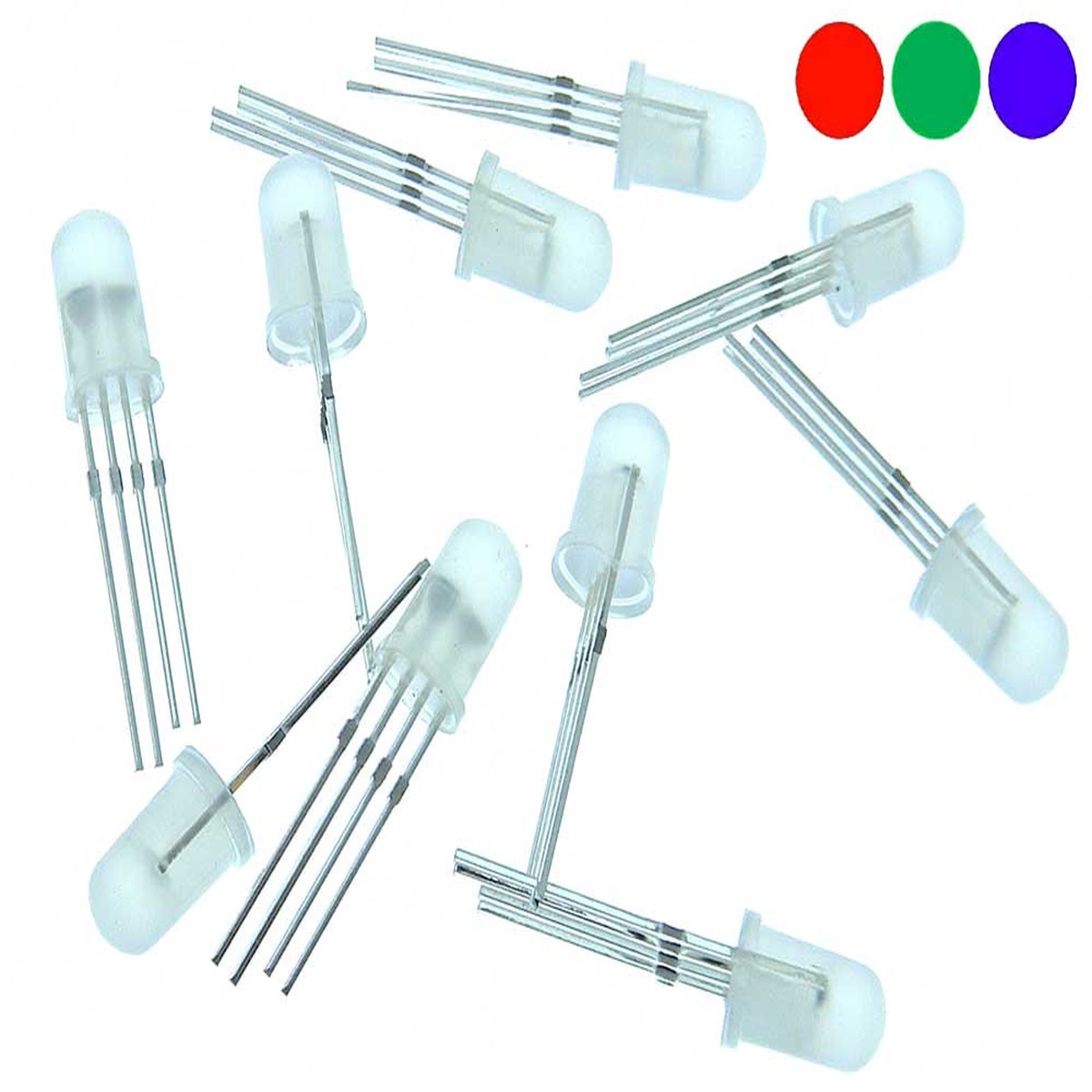

Pack of 10 – PL9823 Programmable RGB 5mm LED

Description

Pack of 10 – PL9823, Programmable RGB 5mm LEDAdditional Notes:* Sold in Pack of 10* PL9823 RGB Pixel LED, that you can program the color and Intensity.* Colors: 16 Million* Intensity: 256 levels* 4 Leads, Vcc, Gnd Din & Dout.* Easy to cascade into longer strings.* Note: that these are not simple LEDs, Must be sent serial data field .* 24 bit field controls the Red, Green & Blue LED.* Power: 5 Volt DC* Current: ~100mA Peak/5mm LED* Viewing Angle: 100-120 Degree* Max Data String: 1024 LEDs* Data Rate: 800KBPS* Red LED: 625nm 600mcd* Green LED: 520nm, 1300mcd* Blue LED: 465nm, 450mcd* 4leads, Vcc, Gnd Din & Dout. MPJA35762 OP
