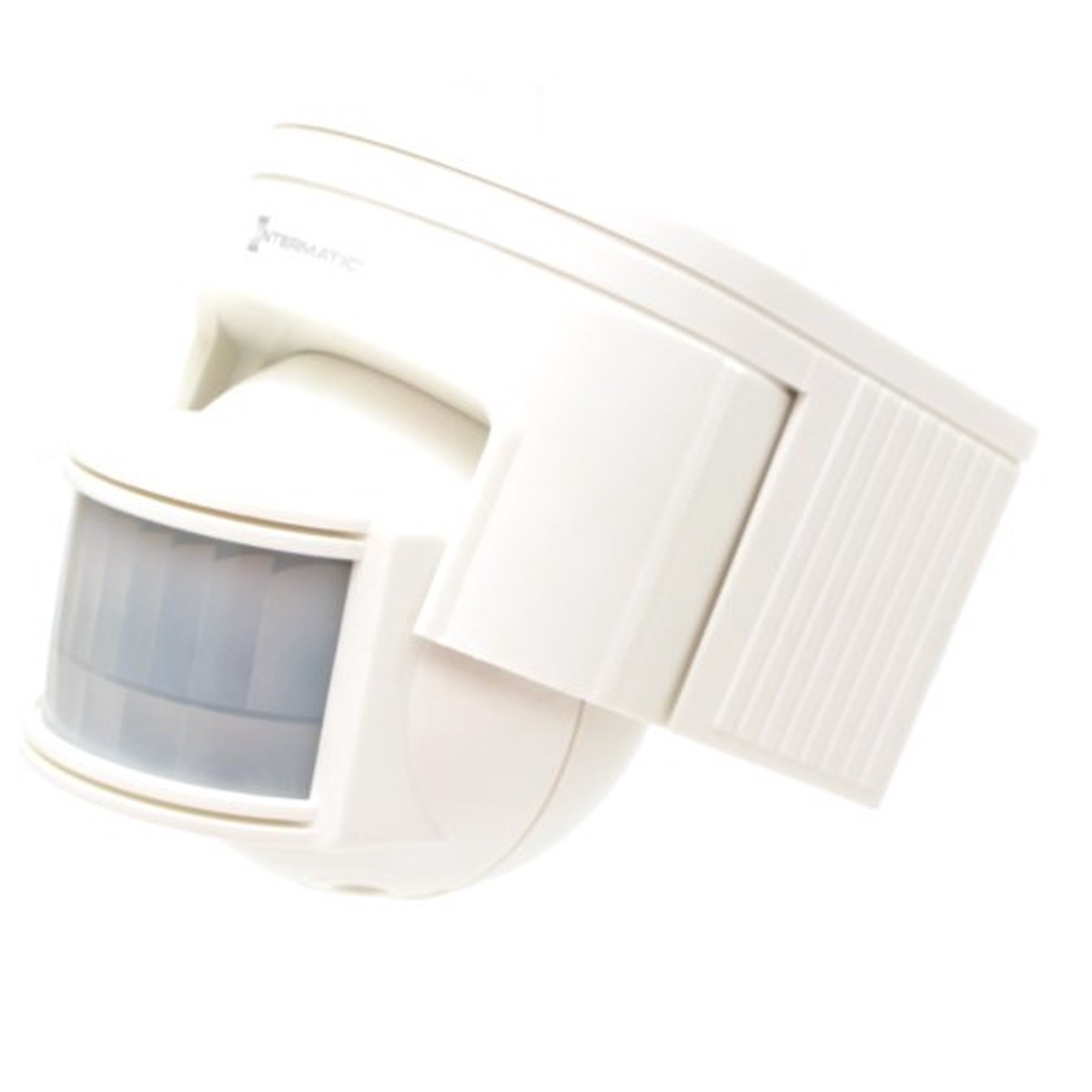

Motion Detection Security Switch

Description

Motion Detection Security SwitchFeatures:UL/CUL listed forwet locations. Rain proof enclosure.Distortion free lens with two detection planesBuilt-in surge protectionManual overrideVoltage – 120V at 60Hz600W max swiching capacity.Adjustable “On” TimeSpecifications:Detection angle of sensor: 140 horizontal / Plane A (10 zones)Sneak-by guard: 90 horizontal / Plane B (6 zones) 8 verticalSwivelling range of sensor: 130 horizontal, 65 vertical.Range over which detection is adjustable: 270 horizontalSensor reach: minimum 40ft in front, 23 ft at sides (based on 10ft mounting height).Works by infrared (thermal) detection. Automatically compensates for temperature changes.Dimensions: H: 5 1/8″ x W: 4 3/4″ x D: 4 5/8″
