Description

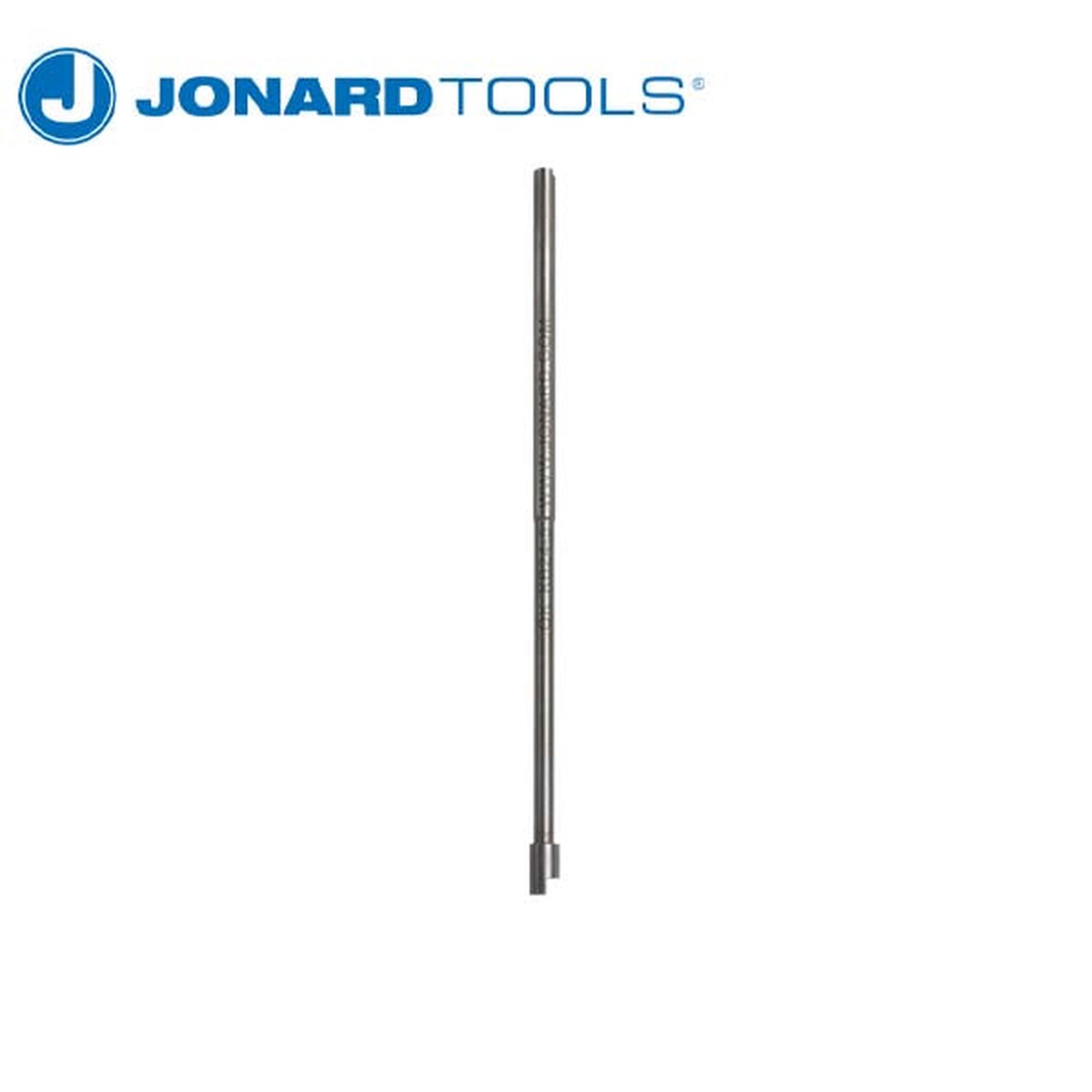

Fully compatible with any make or model of wire wrapping tools, this 5″ wire wrapping bit is perfect for wrapping 24 AWG wire around binding posts in hard-to-reach locations when used in conjunction with a wire wrapping tool.
Compatible Wrap Sleeve Part No.: P2426-5 and P2426-5INS
Specifications
| Sleeve Part No. |
P2426-5 and P2426-5INS (sold separately) |
|---|---|
| Wrap Function |
Wrap |
| Wrap Type |
Regular |
| Wire Gauge |
24 AWG (0.5 mm) |
| Minimum Terminal Diagonal |
0.055″ (1.39 mm) |
| Maximum Terminal Diagonal |
0.073″ (1.85 mm) |
| Terminal Hole Depth |
0.75″ (19.05 mm) |
| Terminal Hole Dia. |
0.075″ (1.9 mm) |
| Effective Radius |
0.100″ (2.54 mm) |
| Wrap Post Size |
0.045″ (1.14 mm) |
| Dimensions | 5.13 in x 0.23 in x 0.23 in (13.02 cm x 0.59 cm x 0.59 cm) |
| Weight | 0.03 lb (11.804 g) |
| UPC # | 811490013438 |
