Jonard Tools - Modified Wire Wrapping Bit - 22-24 AWG

Jonard Tools – Modified Wire Wrapping Bit – 22-24 AWG

Original price was: $80.34.Current price is: $40.17.

SKU: JWJ721924093144 Category:

Description

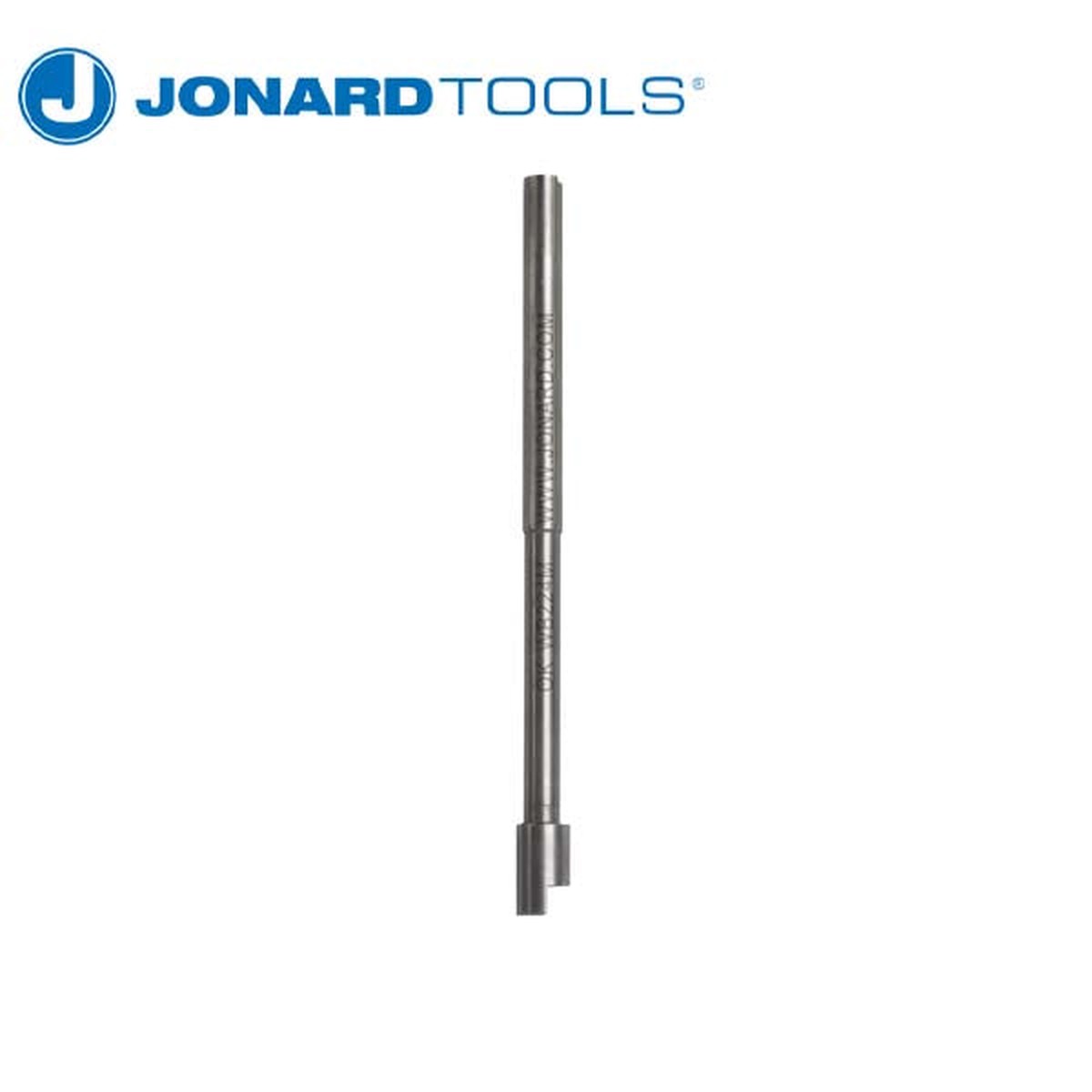

Fully compatible with any make or model of wire wrapping tools, this 3″ modified wire wrapping bit is perfect for wrapping 22-24 AWG wire around binding posts when used in conjunction with a wire wrapping tool.

  • Provides one and a half turns of insulation per wire wrap, increasing the mechanical stability the wrap
  • Recommended for use on 0.025″ (0.63 mm) square terminals with 0.100″ (2.54 mm) center-to-center of the pins

    • Compatible Wrap Sleeve Part #: P2224 and P2224INS

      Specifications

        Sleeve Part No.

        P2224 and P2224INS (sold separately)
        Wrap Function

        Wrap
        Wrap Type

        Modified
        Wire Gauge

        22-24 AWG (0.65 mm-0.50 mm)
        Maximum Insulation Diameter

        0.05″ (1.27 mm)
        Minimum Terminal Diagonal

        0.049″ (1.24 mm)
        Maximum Terminal Diagonal

        0.074″ (1.87 mm)
        Terminal Hole Depth

        1.25″ (31.75 mm)
        Terminal Hole Diameter

        0.075″ (1.9 mm)
        Effective Radius

        0.121″ (3.07 mm)
        Wrap Post Size

        0.045″ (1.14 mm)
        Dimensions 3.11 in x 0.23 in x 0.22 in (7.89 cm x 0.59 cm x 0.55 cm)
        Weight 0.02 lb (7.264 g)
        UPC # 811490013094
