Description

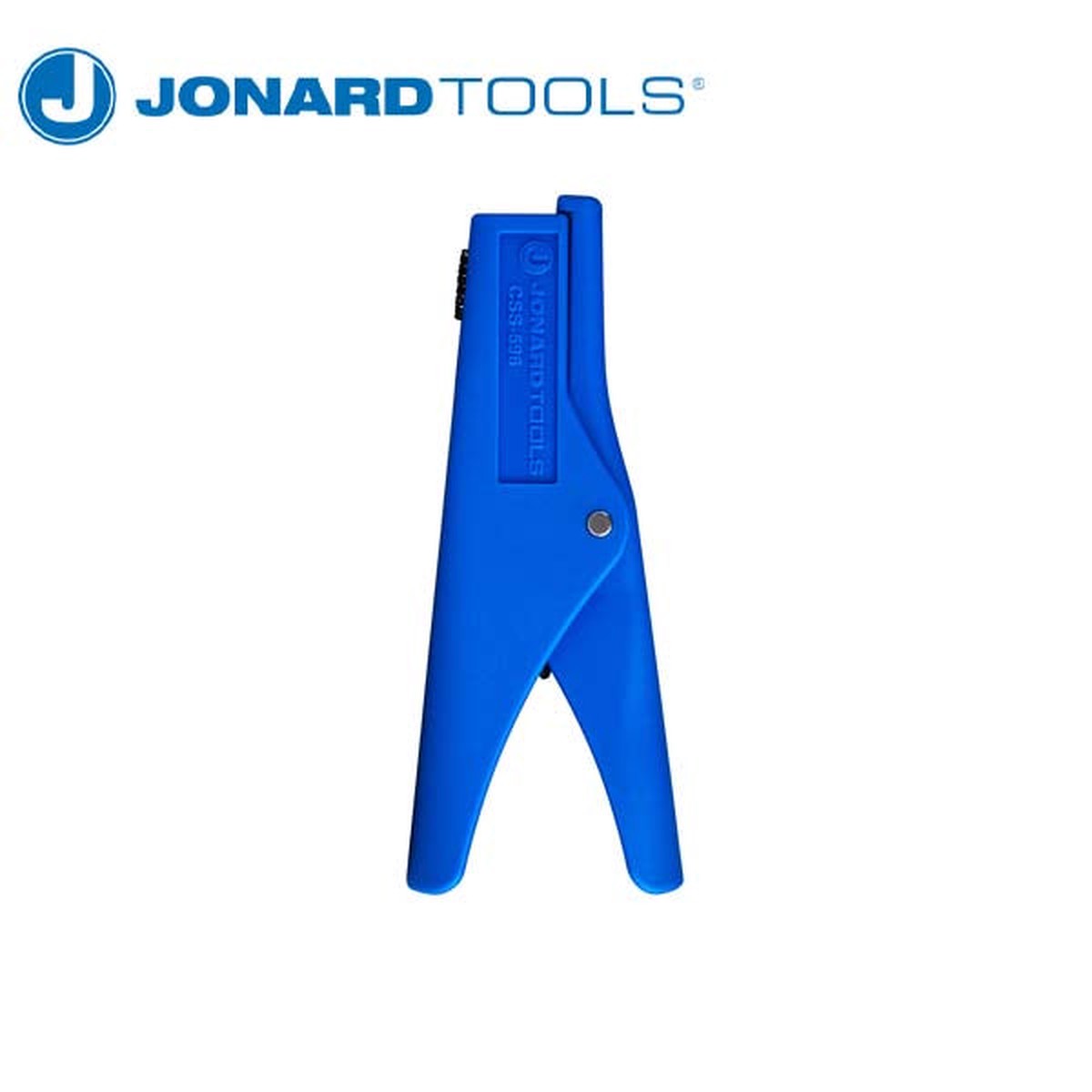

The CSS-596 is a coaxial cable stripper specifically designed to strip the stub end of a coax cable in a wall outlet, exposing 1/4″ of braid and 5/16″ of the center conductor, which eliminates the need to run new cable. This coaxial cable stripper features the following:
- Easy to use: Simply insert cable, rotate like a screwdriver, and remove to strip
- Will not cut or damage the braid or score the center conductor
- High carbon steel blades last for over 5,000 strips on each side
- Hook and loop strip on bottom of tool is used to fold back braid on cable after being stripped
- Can be used with other blade cartridges, such as the CSS-110/115/120/125/130/135
- Replacement cartridge for this tool is: CSS-105
Blade Replacement Instructions:
- To replace blade cartridge: open jaws and push upwards on the front of the blade cartridge. Cartridge will lift out.
- To install new blade cartridge: insert cartridge into tool and close jaws. Give the jaws a squeeze to insure the blade locks into place.
Specifications
| Cable Type |
COAX |
|---|---|
| Cable Size |
RG59 and RG6 |
| Strip Length |
1/4″ braid and 5/16″ center conductor |
| Dimensions | 4.27 in x 1.19 in x 1.69 in (10.84 cm x 3.02 cm x 4.28 cm) |
| Weight | 0.08 lb (34.504 g) |
| UPC # | 811490017412 |
