Description

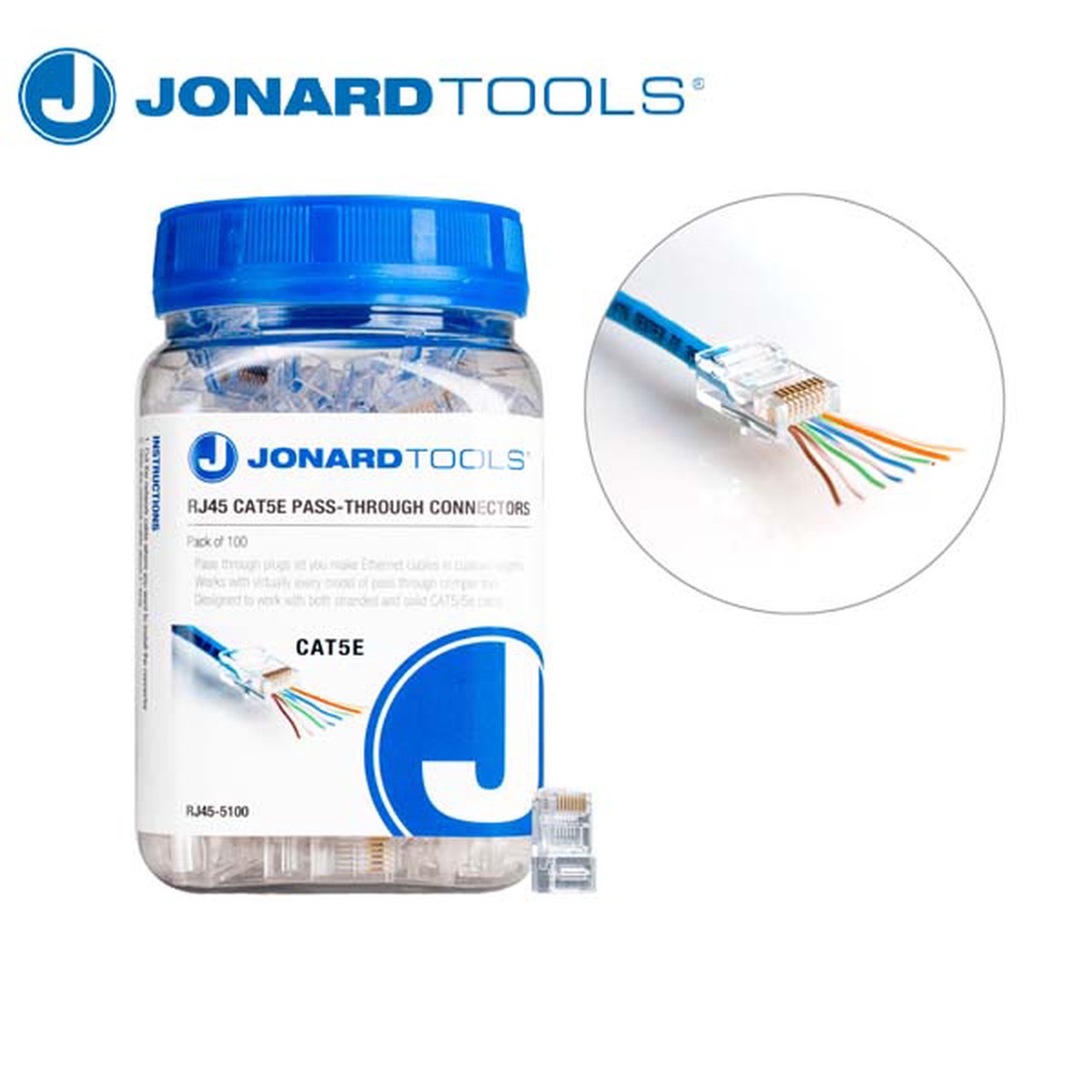

The Jonard Tools CAT5e RJ45 Pass-Through Connectors are used by network installers/technicians in order to terminate CAT5e network cables with a pass-through crimper. They are used in households and businesses and are ideal for terminating a round network cable or even replacing an existing connector. These connectors feature the following:
- 50 in gold plating on contact surfaces provides greater signal quality than the competition
- Tripoint-type prongs allow you to use stranded or solid CAT5/CAT5e cables
- Simplify twisted pair network cable termination by allowing the wires to pass through the connector
- Advantage of the pass-through feature is that you do not have to measure and cut the wires before termination, which can lead to having poor connection and signal loss
- Clear housing allows the operator to see the wire pairs easily
- Comes packaged in a jar for convenient storage
This product comes in a jar of 100 connectors.
Intended for use with our RJ11 and RJ45 connector crimping tool: UC-4569
Specifications
| Number of Connectors |
100 |
|---|---|
| Cable Type |
CAT5, CAT5e Network Cables |
| Connector Type |
Three-prong RJ45 |
| Plating Thickness |
50 micro-inches |
| Housing Material |
Polycarbonate |
| Standards |
UL 94V-2, RoHS Compliant |
| Operating Temperature |
-10C to 60C |
| UPC # | 811490018150 |
