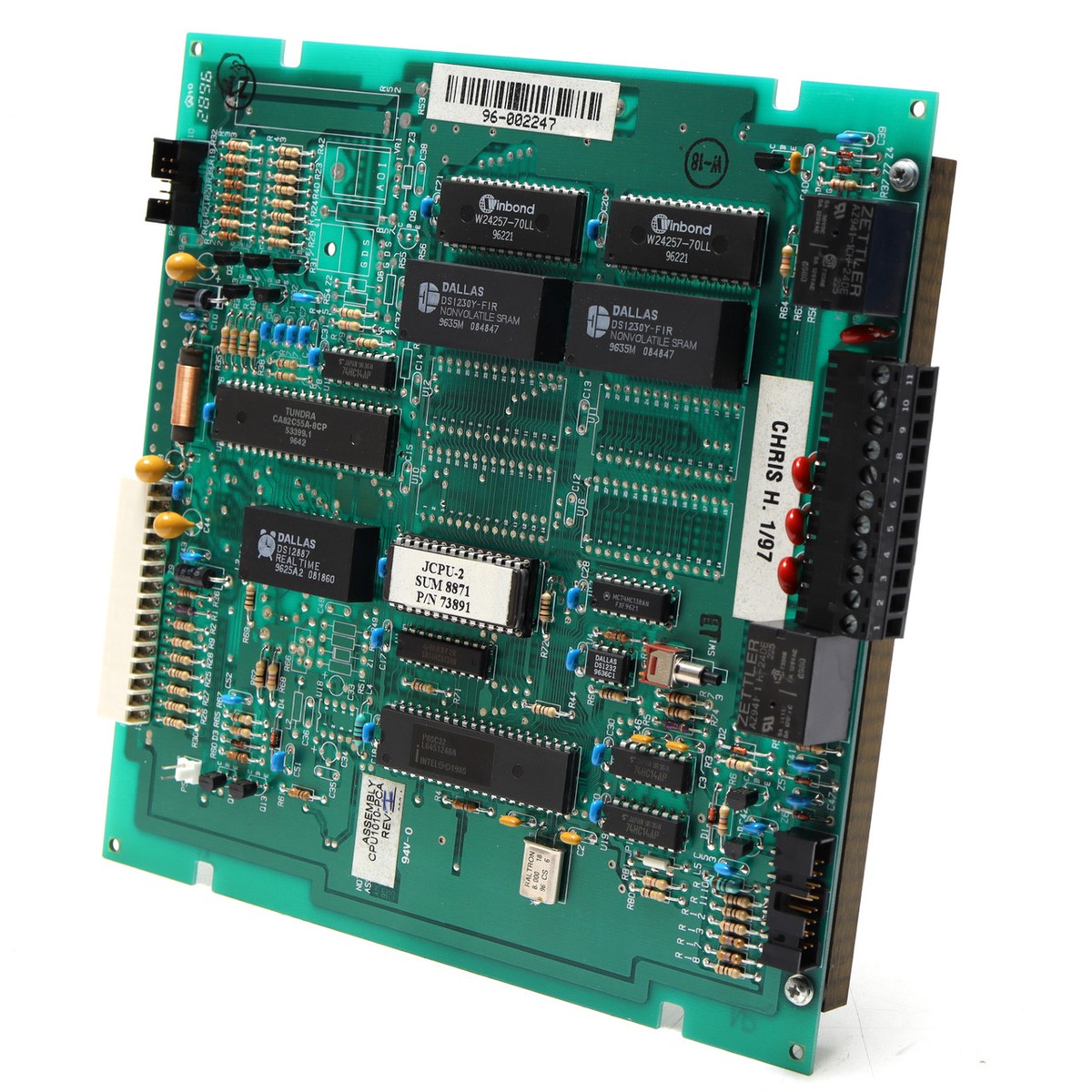

Johnson Controls JCPU2-3030D Fire Alarm CPU

Description

Johnson Controls JCPU2-3030D, Fire Alarm CPUCondition:* Used, Removed From Service In Working Condition.* Sold As-Is. As pictured.Additional Notes:* Listed to UL Standard 864, 9th Edition.* One to ten isolated intelligent Signaling Line Circuits (SLC) Style 4, 6 or 7.* Up to 159 detectors (any mix of ion, photo, laser photo, thermal, or multi-sensor) and 159 modules (N.O. manual stations, two-wire smoke, notification, or relay) per SLC. 318 devices per loop/3180 per FACP or network node.* Large 640-character LCD backlit display (16 lines x 40 characters) or display-less (a node on a network).* Network option supports IFC-640, IFC2-640, IFC-320, IFC3030, IFC2-3030, IFC-200, IFC-400, IFC-1010, IFC-2020, IFW Intelligent Fire Workstation, JNCA or JNCA-2 Network Annunciators.* Built-in Alarm, Trouble, Security, and Supervisory relays.* VeriFire Tools online/offline program option.* Application code is saved in Flash memory, eliminating the need to change EPROMs.* Built-in Degraded Mode option. In the event of a CPU failure, the system is capable of general alarm if a fire condition is present.* Weekly Occupancy Schedules allow changing sensitivity by time of day and day of week.* Optional universal 2040-point DACT.* EIA-485 annunciators, including custom graphics.* History file with 4000-event capacity in nonvolatile memory, plus separate 1000-event alarm only file.* Advanced history filters allow sorting by event, time, date, or address.* Alarm Verification selection per point, with tally.* Autoprogramming and Walk Test reports.* Positive Alarm Sequence (PAS) Presignal.* Silence Inhibit and Auto Silence timer options.* Field-programmable on panel or on PC, with VeriFire Tools program, also check, compare.* Non-alarm points for lower priority functions.* Remote ACK/Signal Silence/System Reset/Drill via monitor modules.* Powerful Boolean logic equations 1000!* Supports SCS Series smoke control system in both HVAC or FSCS modes.* EIA-232 printer port.* EIA-485 annunciator port.Johnson Controls JCPU2-3030D
