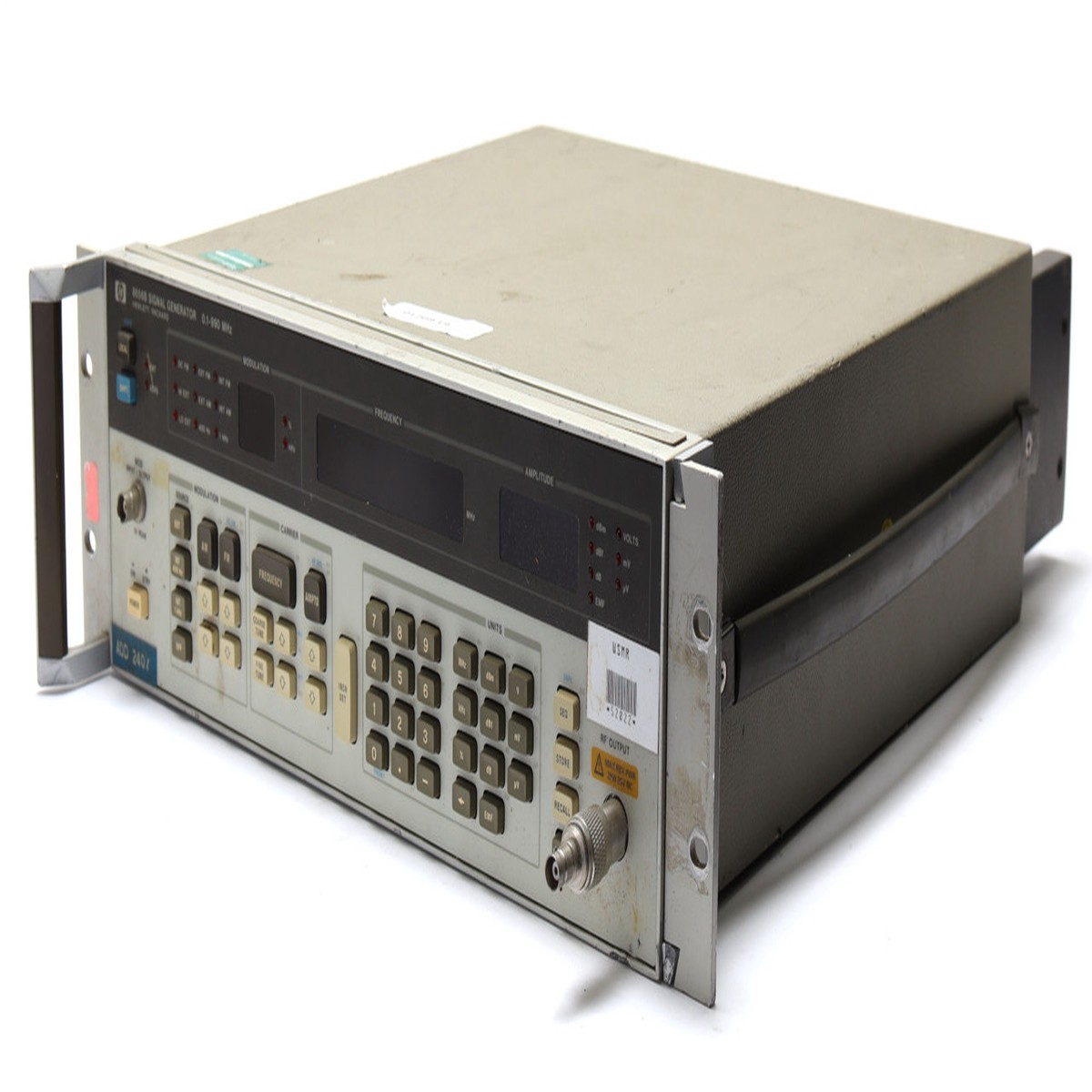

Hewlett-Packard 8656B Synthesized Signal Generator

Description

Hewlett-Packard 8656B, Synthesized Signal GeneratorCondition:* Used, Tested Fine. In Poor Cosmetic Condition.* Sold As-Is For Parts/Repair.Additional Notes:* Power Requirements: 120 Volt AC, 48-440 Hz* Frequency Range: 100 kHz To 990 MHz* Frequency Resolution: 10 kHz* Spectral Purity: SSB phase noise: < -114 dBc/Hz (Fc - 500 MHz, 20 kHz offset) Nonharmonics: -60 dBc (>5 kHz offset, CW) Harmonics: -30 dBc (at levels +7 dBm) Subharmonics: None Residual FM: <7 Hz rms (0.3 to 3 kHz Fc = 500 MHz, CW)* Output Level: +13 to -127 dBm into 50* Output Resolution: 0.1 dB* Absolute Accuracy: < 1 dB, 123 MHz, +7 -124 dBm < 1.5 dB, <123.5 MHz and < -124 dBm or > +7 dBm* Reverse Power Protection: 25 Watt* Amplitude Modulation: Depth (Output at +7dBm): 0-99% Resolution: 1% Bandwidth (1dB): 20 Hz To 40 kHz Accuracy (Internal Rates): <2% 4% of Setting (<90% AM < +7 dBm) Distortion (Internal Rates): <1.5% THD + Noise (0-30% AM < +7dBm)* Frequency Modulation: Max. Peak Deviation: 99 kHz, Fc <123.5 And > 247 MHz; 50 kHz, Fc 123.5 To 247 MHz Resolution: 100 Hz, Deviations < 10 kHz; 1 kHz, Deviations 10 kHz Bandwidth (1dB): DC/20 Hz To 50 kHz Indicator Accuracy: < 5% of Setting Distortion: <0.5% THD + Noise (Internal Rates, Deviation 3 kHz)Hewlett-Packard8656B
