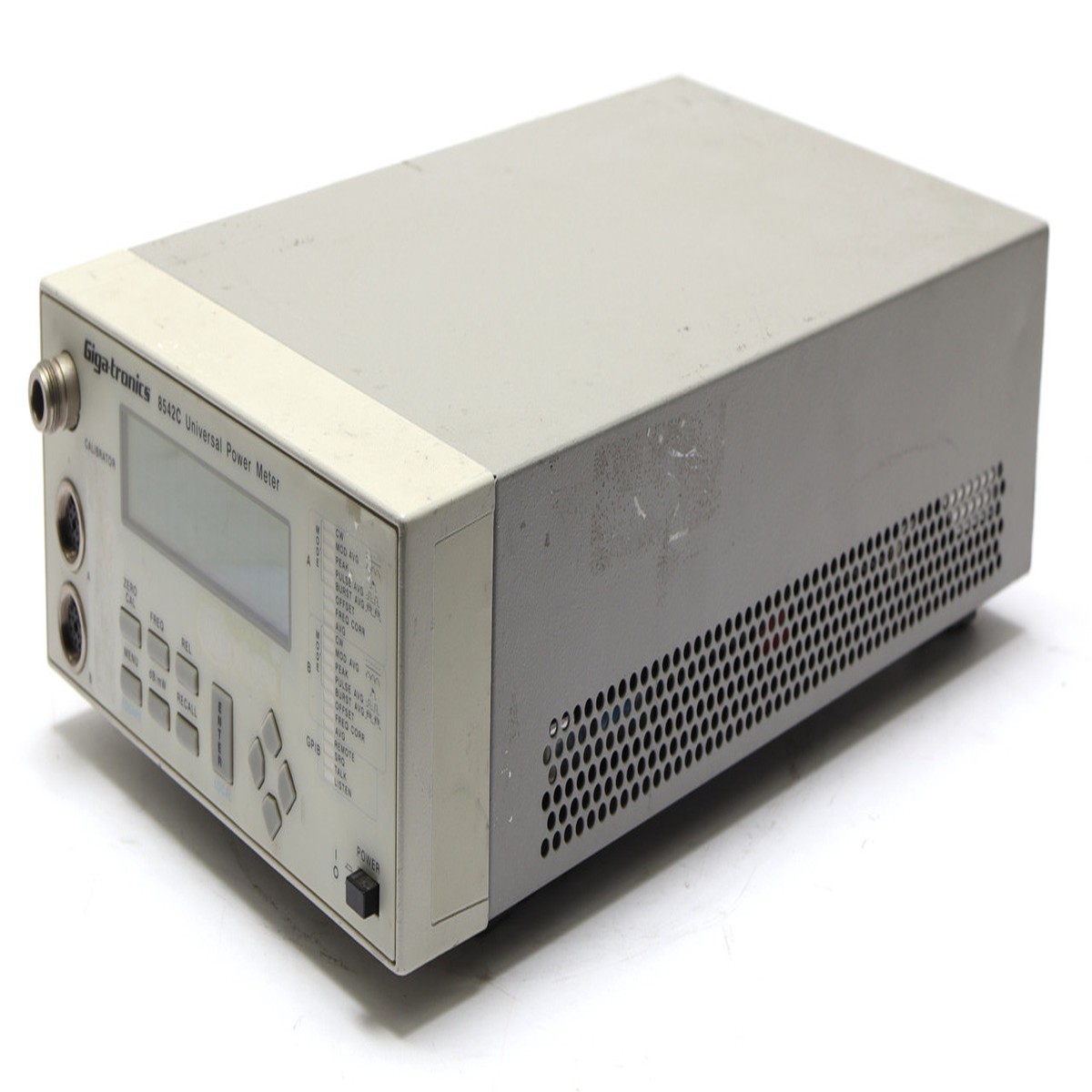

Gigatronics 8542C Universal Power Meter

Description

Gigatronics 8542C Universal Power MeterCondition: * Used, Appears to function. Passes self test, unable to test further. * Sold as-is. As pictured. Additional Notes: * Frequency Range 100 kHz to 40 GHz, depending on sensor used* Power Range: -70 to +47 dBm, depending on sensor used* Choose from an extensive line of CW, Peak, Modulation and True RMS sensors* Single Sensor Dynamic Range: CW Power Sensors: 90 dB (-70 to +20 dBm) Modulation Power Sensors: 87 dB CW, 60 to 80 dB Modulation Mode Peak Power Sensors: 50 dB CW, 47 dB Peak* Linearity: 0.02 dB* Automatically measure average power of TDMA, GSM, and CDMA signals* Optional Time Gating to program a measurement’s start time and duration* Achieve 500 reading per second over GPIB* Use the Fast Buffered Mode to capture up to 4000 readings per second* Measure the instantaneous peak power level of a pulse modulated signalGigatronics 8542C
