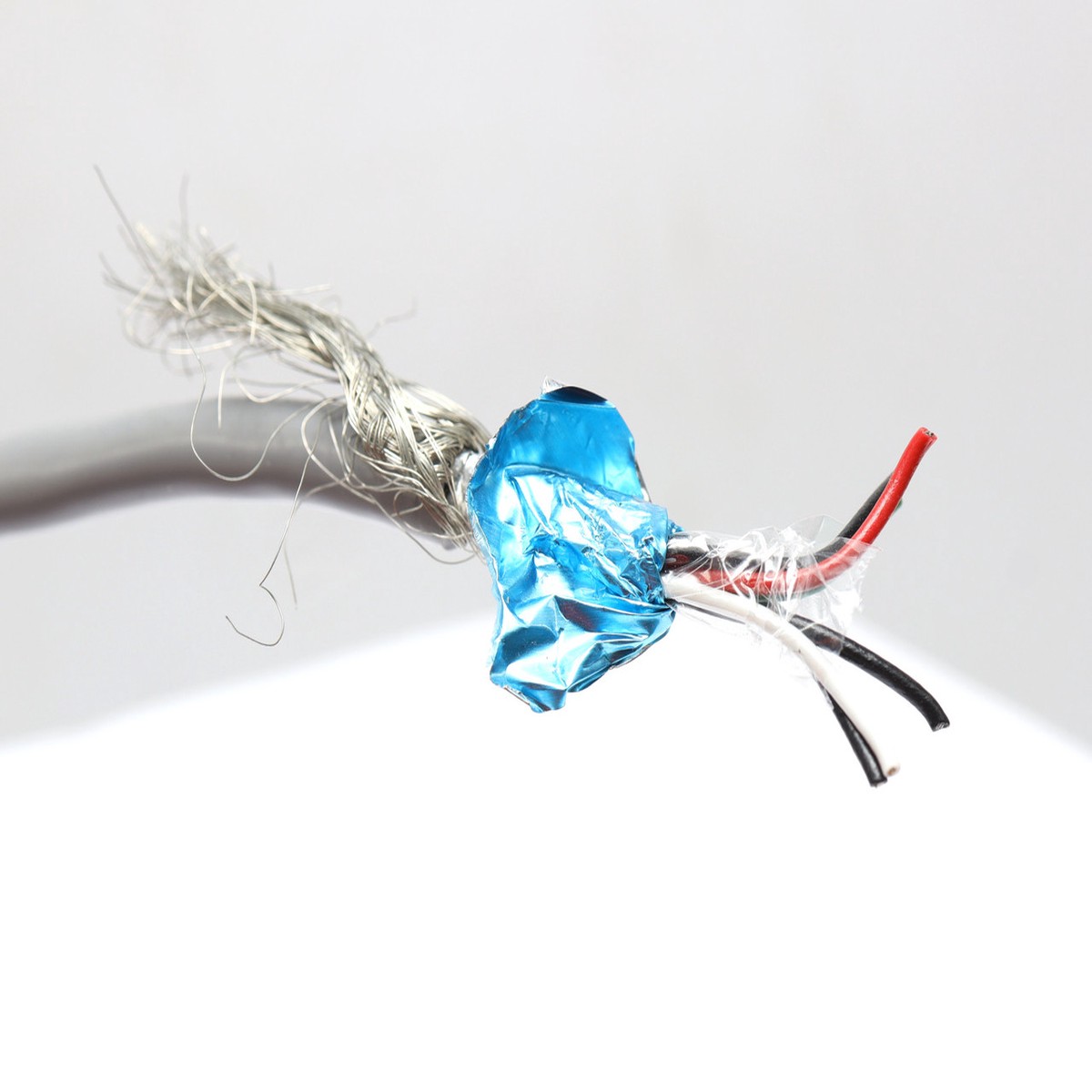

General Cable C0651A.41.10 22/3 Twisted-Pair PVC Jacketed Cable, 1000ft

Description

General Cable C0651A.41.10 22/3 Twisted-Pair PVC Jacketed Cable, 1000ftCondition: * New surplus stock, in sealed OEM packaging. As pictured. Additional Notes: * Equivalent to Belden 8303 Computer EIA RS-232 Cable* Multipair Cable, Shielded, 3 Pair, 22 AWG* Used for computers, industrial equipment, data transmission, control circuits and suitable for EIA RS232 applications* Conductor Size: 22AWG* No. of Conductors: 6 (3 pairs)* Conductors Material: Tinned Copper* Stranding: 7 x 30 Gauge* Shield: 100% Flexfoil aluminum/polyester with 25% overlap, minimum, foil facing out, 65% tinned copper braid* Jacketing: PVC jacket* Nom. OD: 0.296″ (7.52mm)* Temperature Rating: -20C to +80C* Compliances: NEC Article 800 Type CMR (UL: 75C) UL Style 2464 (UL: 80C, 300 V) CSA CMG (CSA: 60C) RoHS Compliant Directive 2011/65/EU Designed to meet UL 70,000 BTU Vertical Tray Flame Test Passes CSA CMG Flame Test CE: Low Voltage Directive (LVD) 2006/95/EC Assists system designers in meeting FCC Docket 20789 demandsGeneral Cable C0651A.41.10
