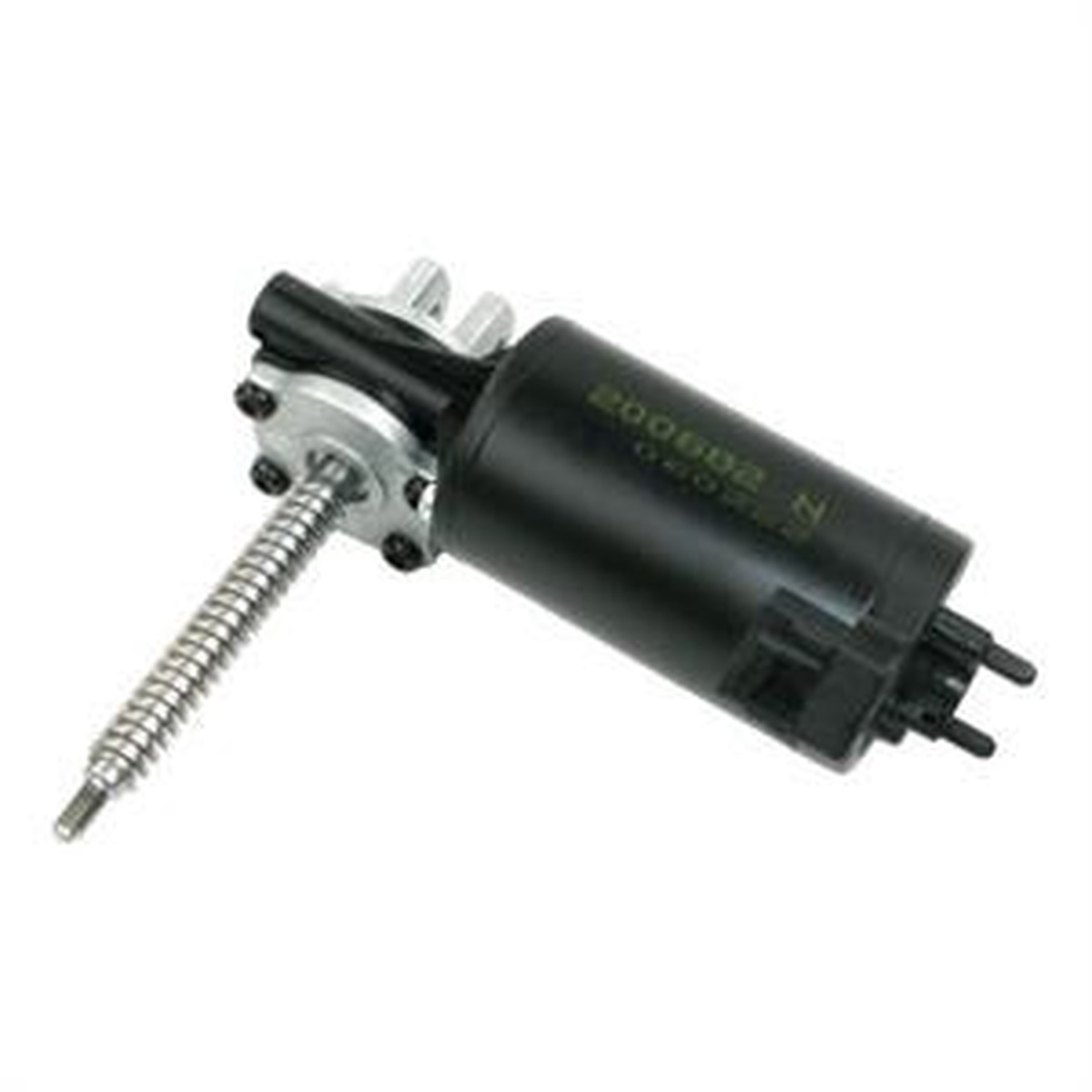

Gear Head DC Motor 12 Volt DC – Worm Drive Right-Hand Configuration

Description

12 Volt DC Right-Angle Gear Head Motor with Worm Drive Designed for power seat adjustment in automobiles (Specifically Daewoo)Heavy gauge U-bracket on back of gearhead, 1/4″ holes with 7mm spacing.RPM: No-load rating: 180 RPMat 12 Volt DC / 1.3 Amp.Dimensions:Motor: Overall length, 144mm (5.66″); Diameter 49mm (1.91″) Worm Shaft: 12mm diameter is 89mm (3.55″) longThread: 7/16″-8 (right-hand twist) The last 12mm of the shaft has a 6 x 1.0 metric LHthread (Left-hand twist)Power Termination: Packard 12064750 Connector (3/16″ quick-connect terminals); Accepts Packard 12064749 ConnectorManufactured in 2006Daewoo7466115; 200682 N
