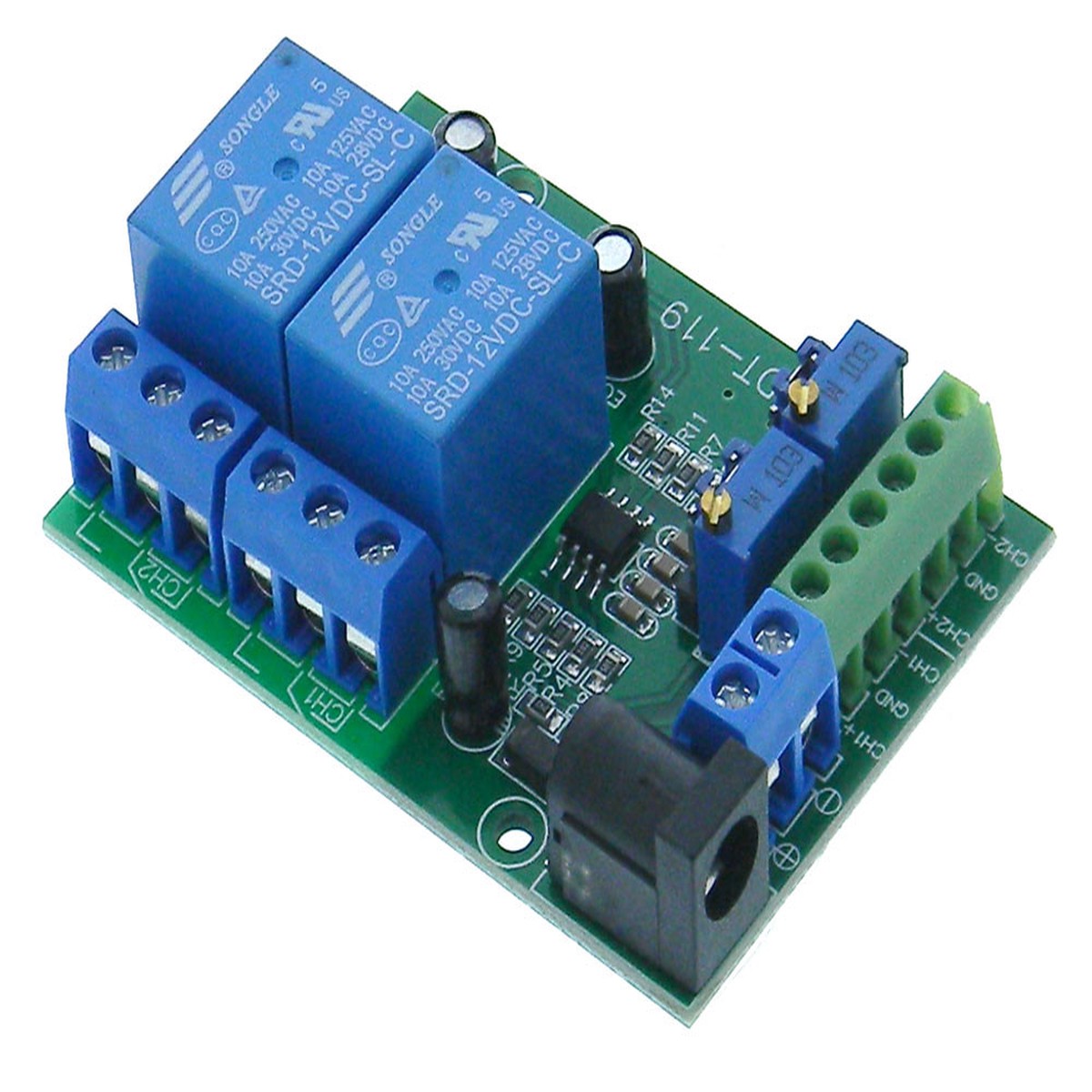

Dual Voltage Comparator Module with SPDT Relays 12V

Description

Dual Voltage Comparator Module With SPDT Relays 12 VoltAdditional Notes:* Dual precision Voltage Module. Each independant channel compares an input to an onboard adjustable voltage reference or an external reference.* 3 Jumper Selectable Functions: 1: When the input voltage is Greater than the Internal reference voltage, the relay is energized.. 2: When the input voltage is Greater than the External reference voltage, the relay is closed. 3: When the input voltage is Less than the Internal reference voltage, the relay is closed.* Power: 12 Volt DC @~ 55mA* Connection:* Power: 5.5/2.1mm Coaxial Jack or Terminal Strip.* Input & Relay Contacts: Terminal Strips* Relay: SPDT 10 Amp @ 250/125 VoltAC/30 Volt DC* Dimensions (LxWxH): 2-1/2″ x 1-3/4″x 3/4″ (63mm x 45mm x 20mm) MPJA37870 MI
