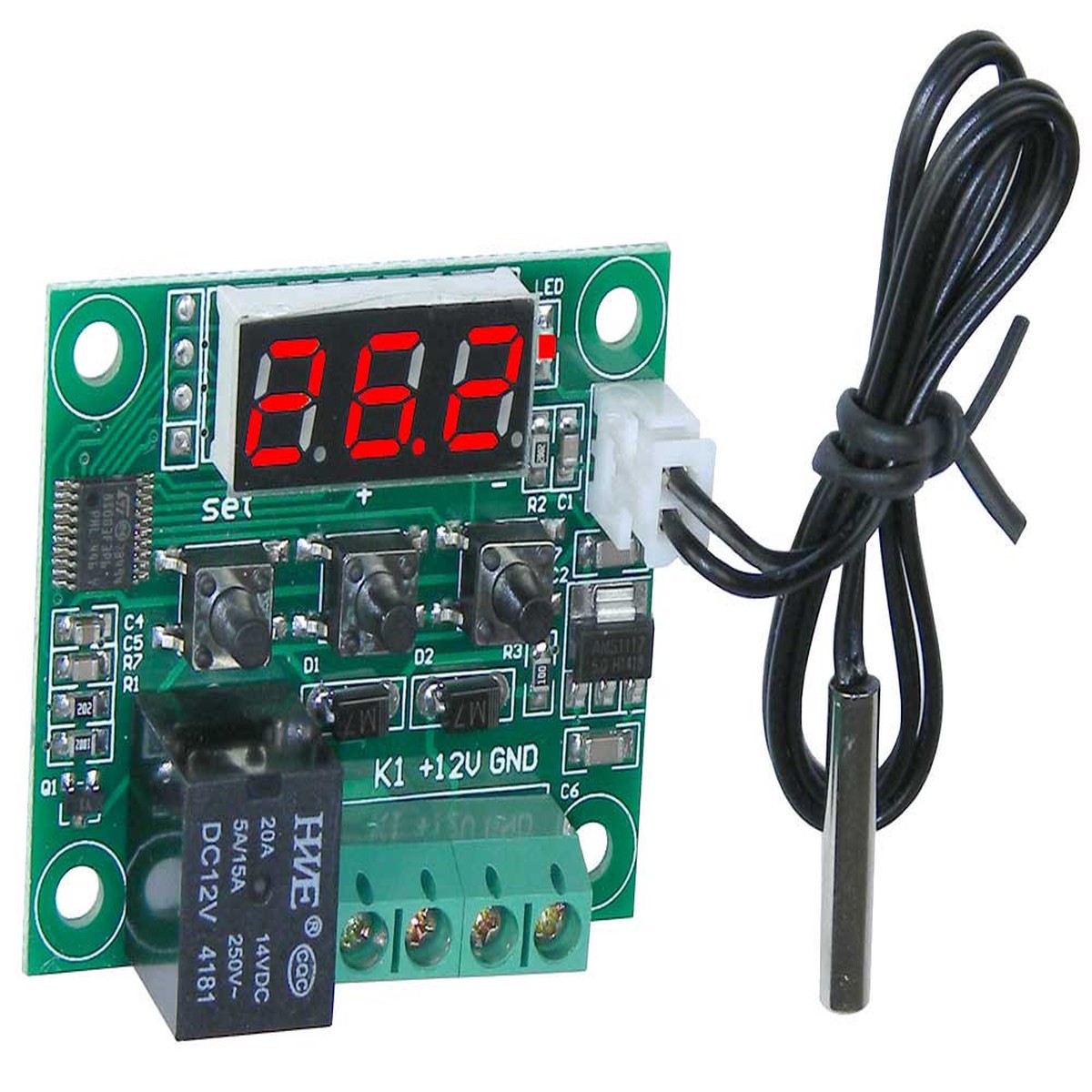

Digital Temperature Controller, Celsius

Description

Digital Temperature Controller, CelsiusAdditional Notes:* Multi purpose, compact digital thermostat with isolated relay output and 3digit 0.28 LED display. * Features: programmable set Points, Cool or Heat control, Hysteresis, Delay and High Temp. Alarm.* Control Temperature Range: -50 to +110 Celsius Only* Power: 12 Volt DC* Current: ~35mA Relay open/~65mA Relay energized* Refresh rate: 0.5sec.* Resolution: 0.1deg . from -9.99 to +99.9 Celsius Only* 1.0deg. for above 100 Celsius Only* Accuracy: Measurement : 0.1deg.* Control: 0.1deg.* Relay: SPST-NO 20A/14VDC; 20A/125VAC* Sensor: NTC waterproof metal probe 4mm Dia x 21mm (12in. leads.)* Module Temp. Range: -10 to 60C;* Humidity: 20-85%* Terminal Strip for Power & Relay contacts.* Clear Plastic Case: See 34111 BX* L: 1-7/8in. W: 1-9/16in. H: 5/8in. MPJA32184 MP
