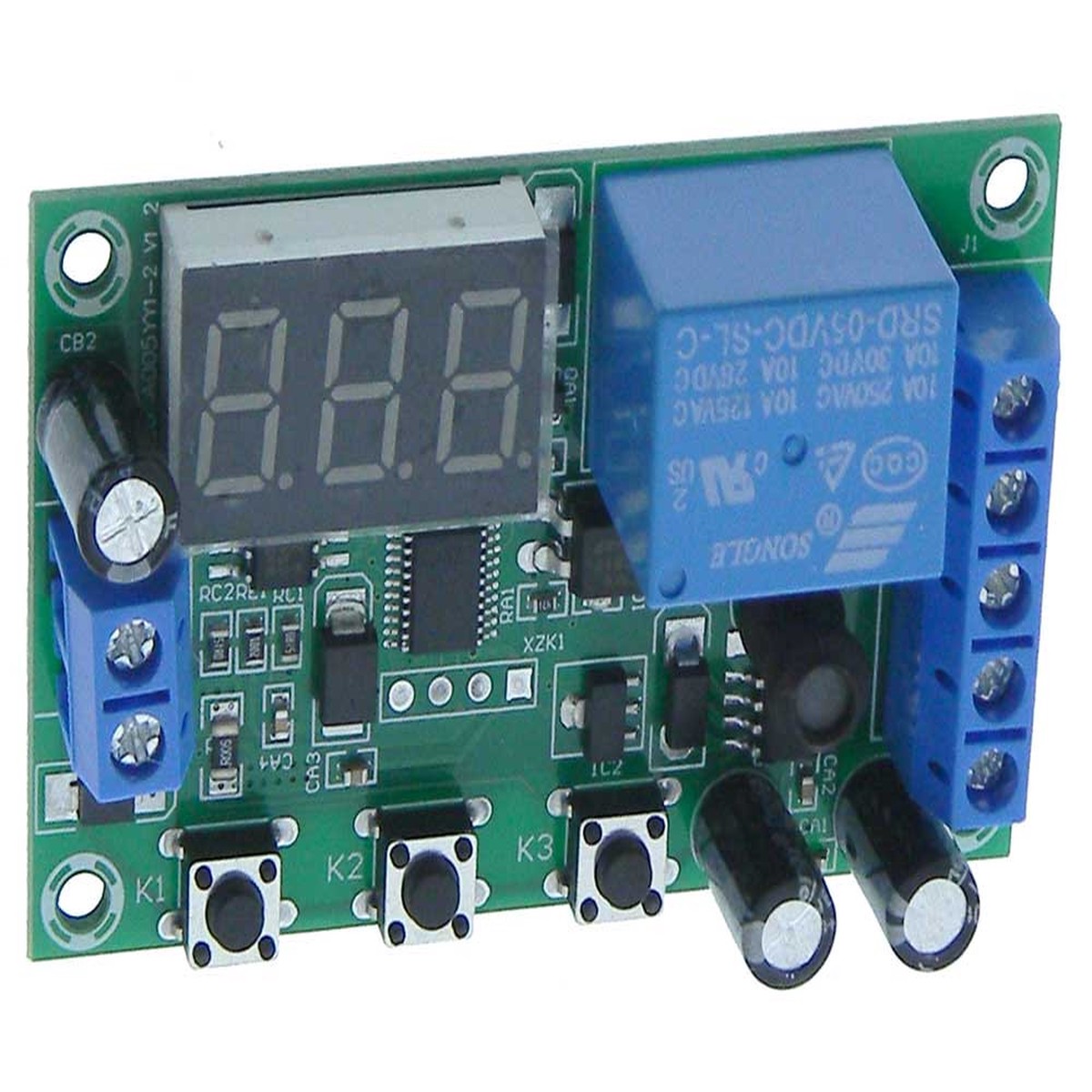

DC Over-Under Current Detector, 12VDC, 10A

Description

DC Over-Under Current Detector, 12VDC, 10AAdditional Notes:* Sensor board for montioring Over and Under current flow in a 12VDC load. Isolated Relay contacts provide output oportunities for alarms, fans, load control.* Adjustable High & Lower Limits* Selectable Modes for the relay output.* NOTE: Load is Connected Between IN+ & IN- Terminals. DC- (Minus) and IN – Are Common.* Load Power Is Supplied By The Board .* Removing Power From Board; Removes Power From Load.* Power: 12VDC* Standby Current: ~20mA* Load Current: 10A Max* Meausurment Range: DC 0~10A* Accuracy: 0.01A(10mA)* Display: 3 digit 0.36-inch Red LED* Relay: SPDT* Rated: 10A @ 251/125VAC/30VDC* L: 65mm (2-9/16) W: 40mm (1-9/16) H: 20mm (3/4) MPJA38420 MI
