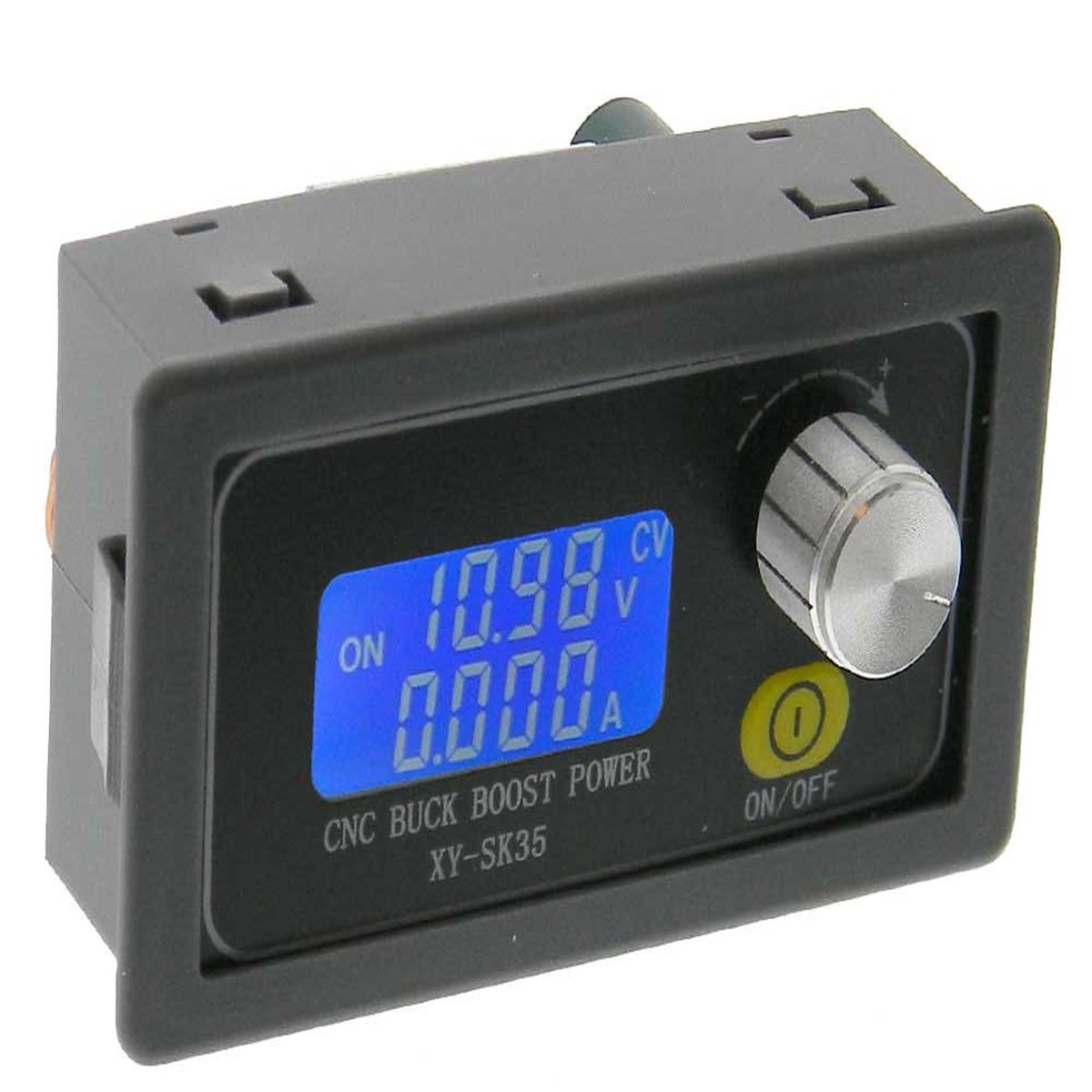

DC-DC Adjustable DC Power Supply Module

Description

DC-DC Adjustable DC Power Supply ModuleAdditional Notes:* Snap-in, 35W adjustable buck-boost converter power supply module with constant voltage and current limit modes. * Adjustable protection for: Undervoltage (LVP), Overvoltage (OVP), Overcurrent (OCP) Over Power W (OPP), Over Capacity Ah Over Power (OPH) Max Operating Time (OHP)* Dual 4 digit Backlit LCD Display* Input Voltage: DC 5V-30 V DC (Recommend that the Input voltage is > 7 V* if < 7 V, the output power will decrease)* Output Voltage: 0.6-30VDC* Output Current: 4A max Power Limited ~35W /50W Fan cooled* Accuracy: Voltage: 5% + 1 LSD Resolution: 0.01 V Current: 8% + 3 LSD Resolution: 0.001A* Operating Temperature: -20C to 40C(-4F to 104F)* Conversion efficiency: ~ 88%.* Undervoltage( LVP): Adj. 4.7-30VDC, (default 4.7 V)* Overvoltage (OVP): Adj. 4.8-30VDC, (default 31 V )* Overcurrent (OCP): Adj. 0.5A-4.2A range (default 4.2A)* Over Power W (OPP): Adj. 1W-50W (default: 50W)* Overtemperature: 100 C* Max Capacity (OAH): 4 range Adj. 9.999/99.99/999.9 & 9999 Ah* Max Energy (OPH): 4 range Adj. 9.999/99.99/999.9 & 9999 Wh* Max Run Time: (OHP): 00:00-99.99 (HH:mm)* L: 79mm W: 42mm D:35mm MPJA36146
