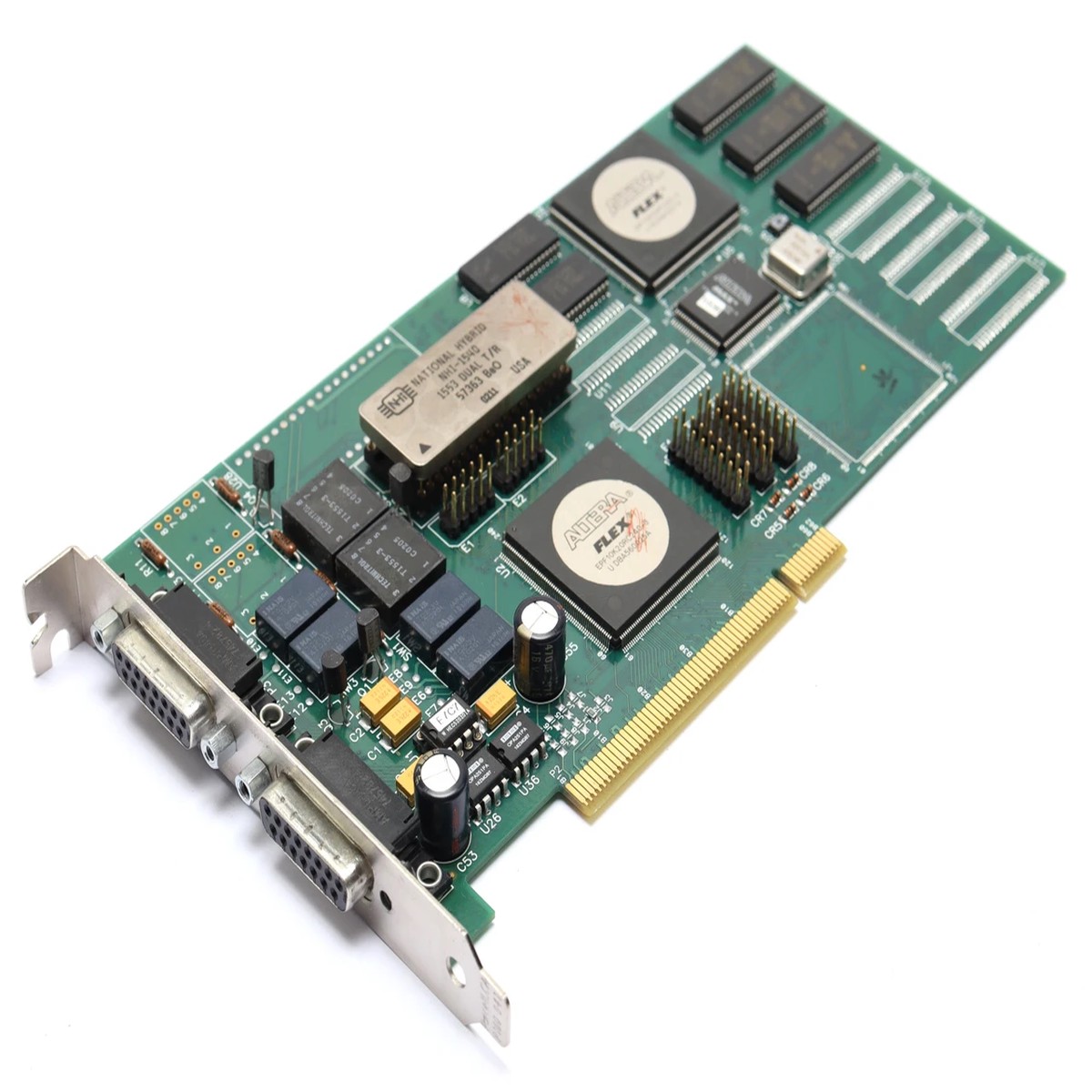

Condor Engineering PCI-1553-S MIL-STD-1553 PCI Interface

Description

Condor Engineering PCI-1553-S MIL-STD-1553 PCI InterfaceCondition:* Used, removed from service in working condition. Unable to test.* As pictured.Additional Notes:* PCI interface board* Single Channel* Single-Function* MIL-STD-1553B* Enables full-featured Bus Controller, Remote Terminal (up to 31 RTs), and Bus Monitor operation on MIL-STD-1553A/B and MacAir datalinks.* Integrates FPGA processing with an advanced API to accelerate development cycles and deliver deterministic real-time performance.* Bus Interface: PCI 33/66 MHz, up to 266 MB/s; PCI-X support* Memory: 1 MB RAM per channel* Timetags: 45-bit or 64-bit options; 25 ns message timetagging; 48-bit/100 ns time stamp capability* I/O Signals: Up to 32 TTL level I/O Up to 8 RS-422 differential I/O Up to 40 single-ended TTL discretes Up to 12 differential discretes (RS-422) 8 digital and 8 avionics discrete I/Os* Bus Coupling: Transformer or direct coupling (configurable)* Time Code: IRIG time code generation; IRIG-B receiver/generator with GPS synchronization* Logic Voltage: 3.3 V* Form Factor: Half-size PCICondor EngineeringPCI-1553-S
