Description

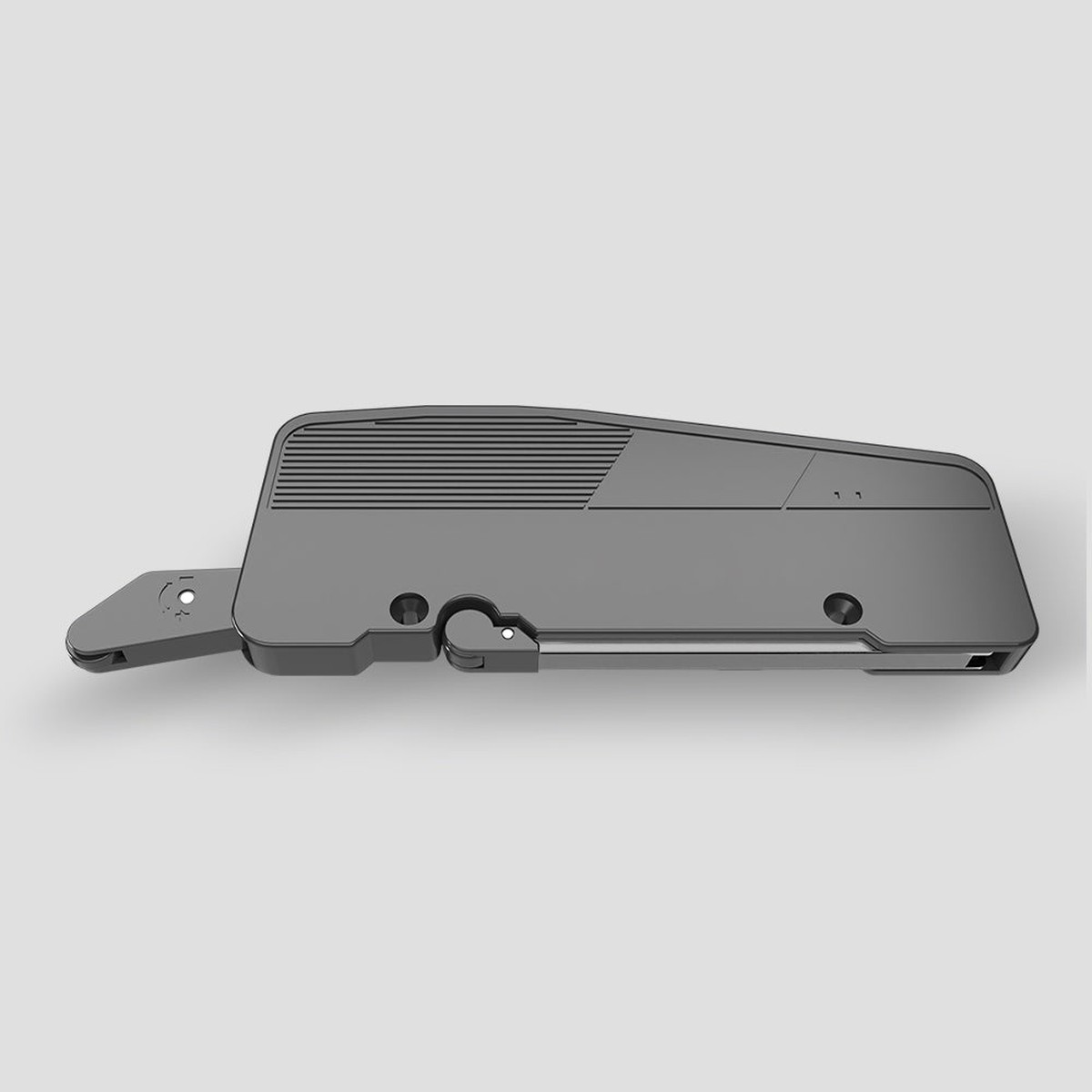

Door Opener (Push to Open)
Package: 1 pc
Product Feature:
- Push to open application for light weight and heavy weight doors:
– Light version:Normally used for base or upper cabinet.
– Heavy version -Normally used for higher door (E.g. Pantry door). - Open the door to a maximum of 110 degrees.
- A reset angle of at least 60 degrees is required before closing the door panel.
- Suggested using with soft-closing hinges.
- Simply installs on the cabinet’s top. No additional installation of sliding groove part is required.
- *Note:The front of the shelf panel must algin with the front of the side panel
| Product Code | Size (mm) | Maximin Door Size (kg) | Suggested Door Size (mm) | Suggested number of hinges to use | |
| Light Version | 962050L | 210 (L) x 70 (H) | 7.5 | < 700 (H) x 600 (W) | 2 units |
| Heavy Version | 962050H | 20 (Wooden Door) |
< 2700 (H) x 600 (W) | 3 – 6 units | |
| 25 (Aluminum Frame Door) |
Unit of measurement in millimeters (mm) if not specified
