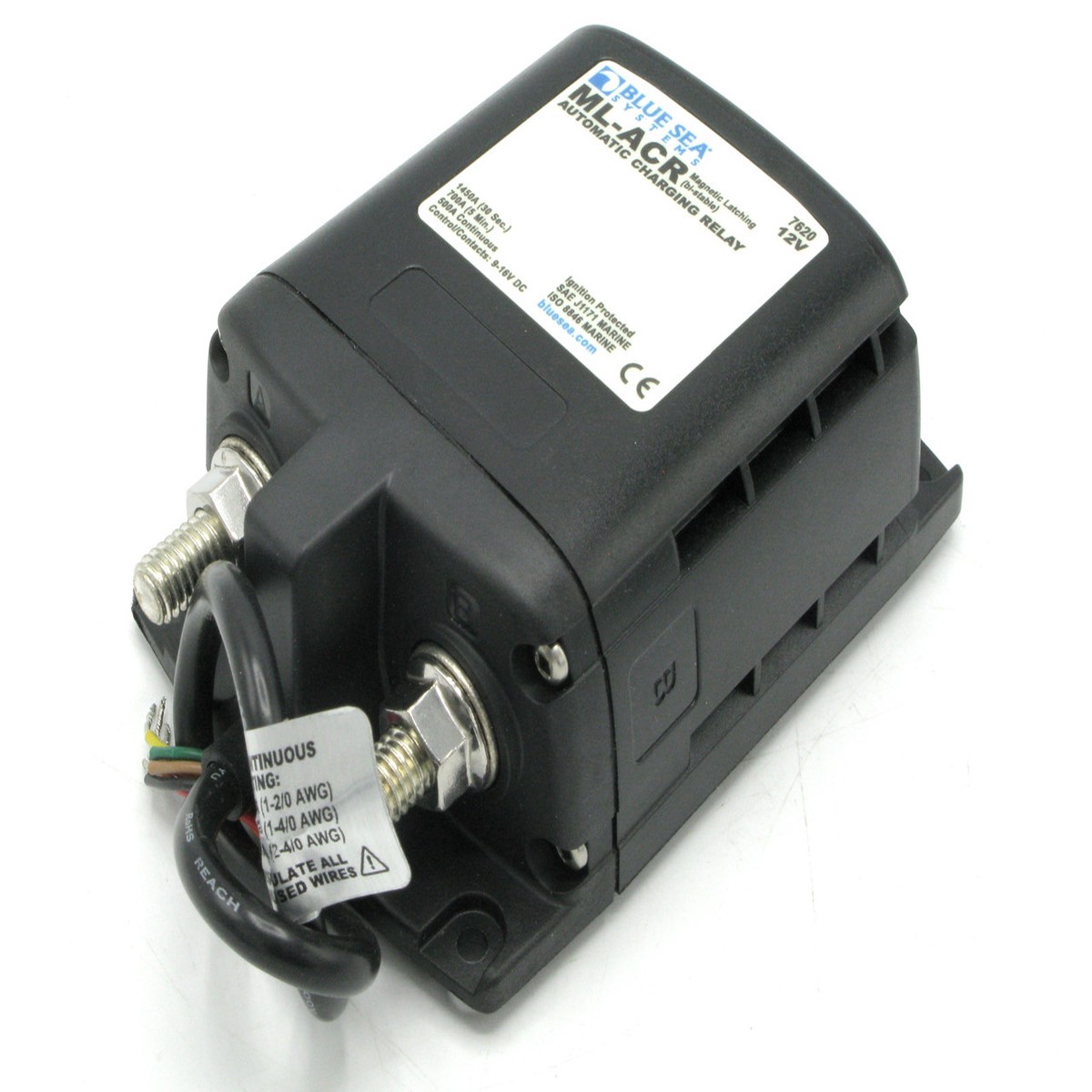

Blue Sea Systems ML-ACR Automatic Charging Relay with Manual Control, 12V DC, 500A

Description

Blue Sea Systems ML-ACR Automatic Charging Relay With Manual Control, 12 Volt DC, 500 AmpCondition:* New, Surplus Stock. Not In OEM Packaging.* Does Not Include Rocker Switch. Additional Notes:* Does Not Include Rocker Switch* Control Circuit Connection: Tinned wires* Nominal Voltage12 Volt DC* Manual Control: Yes* Engine Isolation: Yes* Mounting: #10* Start Assist: Yes* Start Isolation: Yes* Amperage Operating Current: 13mA* Average Operating Current when Changing State: <7.0A* Terminal Stud Torque: 140in-lb (15.82Nm)* Continuous Rating: 500 Amp* Intermittent Rating: 700 Amp (5 Min)* Cranking Rating 30 Sec: 1450 Amp DC* Operating Temperature: -10C to 60C* Cable Size to Meet Ratings: 4/0 AWG x 2* Live Current Switching: 300 Amp @ 12 Volt DC* Stud Material: Tinned Copper* Switching Cycles: 100000* Terminal Ring Diameter Clearance: 1.12" (28.45mm)* Terminal Stud Length: 1.50" (38.1mm)* Terminal Stud Size: 3/8" - 16 (M10)* Wire Size: 20 AWGBlue Sea Systems ML-ACR
