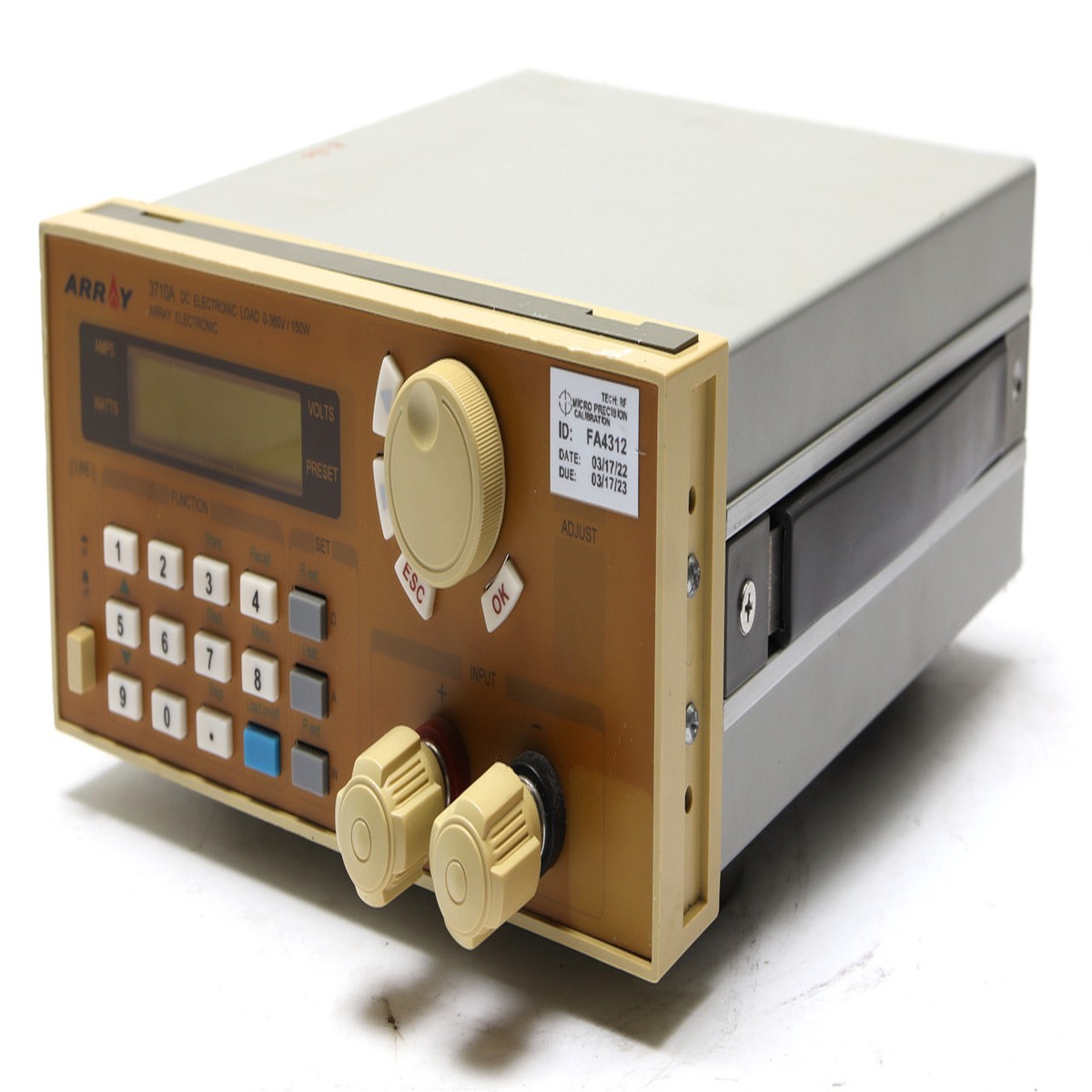

Array 3710A, 60 Volt, 30 Amp, 150W Programmable DC Electronic Load

Description

Array 3710A, 60 Volt, 30 Amp, 150W Programmable DC Electronic LoadCondition:* Used, in good working condition. Sold as-is. * As pictured. Additional Notes:* Max. input power: 150 Watts* Max. current rating: 30 Amps* Max. voltage input: 360Volts DC* Max. voltage and current settings may be adjusted in 10mV/10mA increments* On board storage for 10 different voltage/current settings* Programmable output* Over power protection* Over current protection* May be monitored by PC software (download software link below)* Small-size and light weight* LCD with back lighting* Can be used in parallel connection* Main Functions: Set A Constant Current (CC) value) Set a Constant Power (CP) value Set a Constant Resistance (CR) value Storing 10 Programs on board w/o using PC interface Recall a Stored Program Start/Stop a Program Switch On/Off an Output* Sub Functions: Set up Max. Current Set up Max. Power Set up Program Set up Baudrate Set up Address Set up Password* Input voltage: 110V AC 60Hz (selectable, via rear panel switch)* Dimensions (mm): 212 x 88 x 250Array 3710A
