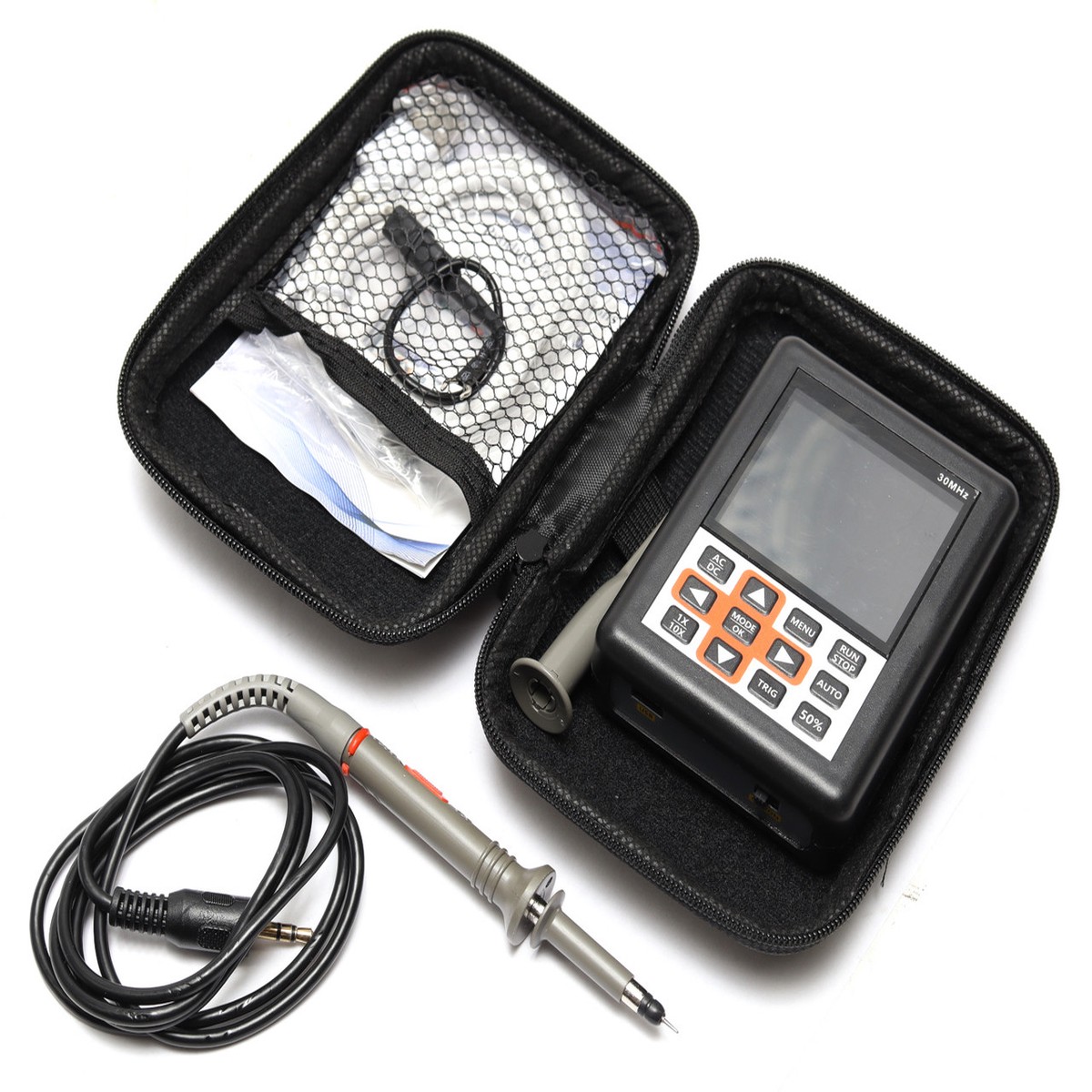

30MHz Handheld Mini DSO Oscilloscope with 1-10x Probe

Description

30MHz Handheld Mini DSO Oscilloscope with 1-10x ProbeAdditional Notes:* Full function, high performance handheld mini oscilloscope with high resolution 2.4 inch 320×240 LCD screen.* up to 10hr. run time on charged battery* One button AUTO, the waveform can be displayed without complicated adjustments. Waveform file manager supports thumbnail browsing, viewing, detail view, delete and other functions.* Day mode (White Background) and Night mode (Black Background)* Measures up to 11 parameters:VPP, Vmax, Vmin, Vavg, Vrms, Frequency, Duty+, Duty-, Time+, Time-, Time* Analog bandwidth: 30MHz* ADC precision: 8bits* Maximum real time sampling rate: 200MS/s* Vertical sensitivity: 50 mV/div ~ 200 V/div* Input: 3.5mm Jack* Input impeadance: 1Mohm* Horizontal time base range: 50S/div ~ 125nS/div* Trigger: Single, Normal or Automatic* Trigger Edge: Selectable Rising or Falling* Coupling: AC or DC* Maximum Input Voltage: 40V (1X probe), 800 V (10X probe)* AC, DC or DC+AC)* Memory: 64M storage space, 2000 waveform pictures max* Power supply: 3000 mAh lithium battery* Includes 5ft. USB Charger cable,* Padded Plastic Storage Case* H: 3-5/8″ O/A W: 2-3/4″ T: 1-1/8″ MPJA35907 TE
