Description

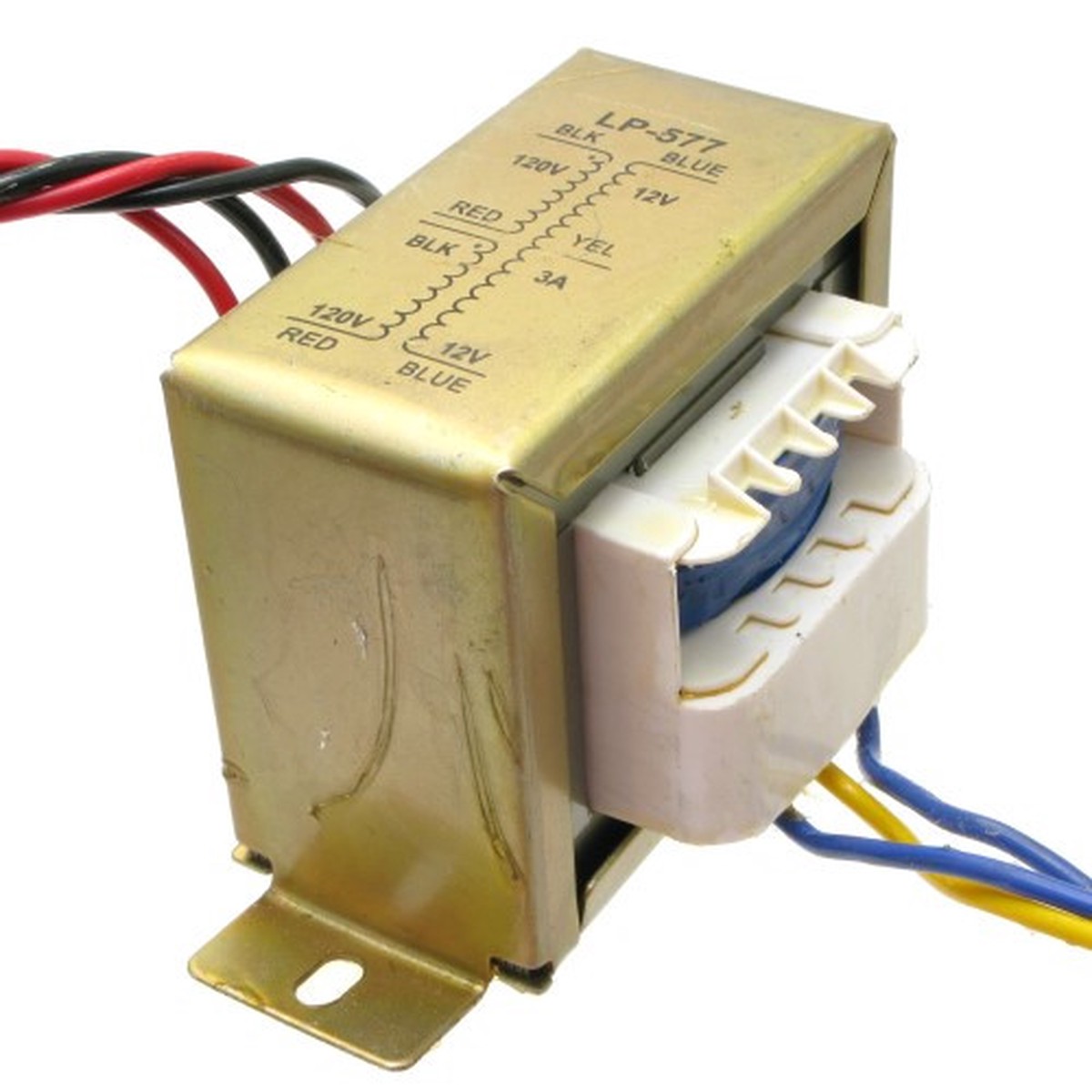

24VCT Transformer3 Amp, 72 Watt- 120/220 VACInput: 110/220VAC 60HzPrimary Connections 120 VAC:Connect the 2 black wires together and connect the 2 red wires together and apply power to each pair.Primary Connections 220 VAC:Connect the inner black & red wires together and apply power to the outer black & red wiresSecondary Connections: Blue Wires:24 VAC, Center-tap: YellowRated Current:3 amps output.Chassis mount transformer with 6 wire leads for connections.Dimensions: (L) 2-3/8″ (3-1/4″ with mount flanges) x (W) 2-1/8″ x (H) 2″OkuraLP-577
