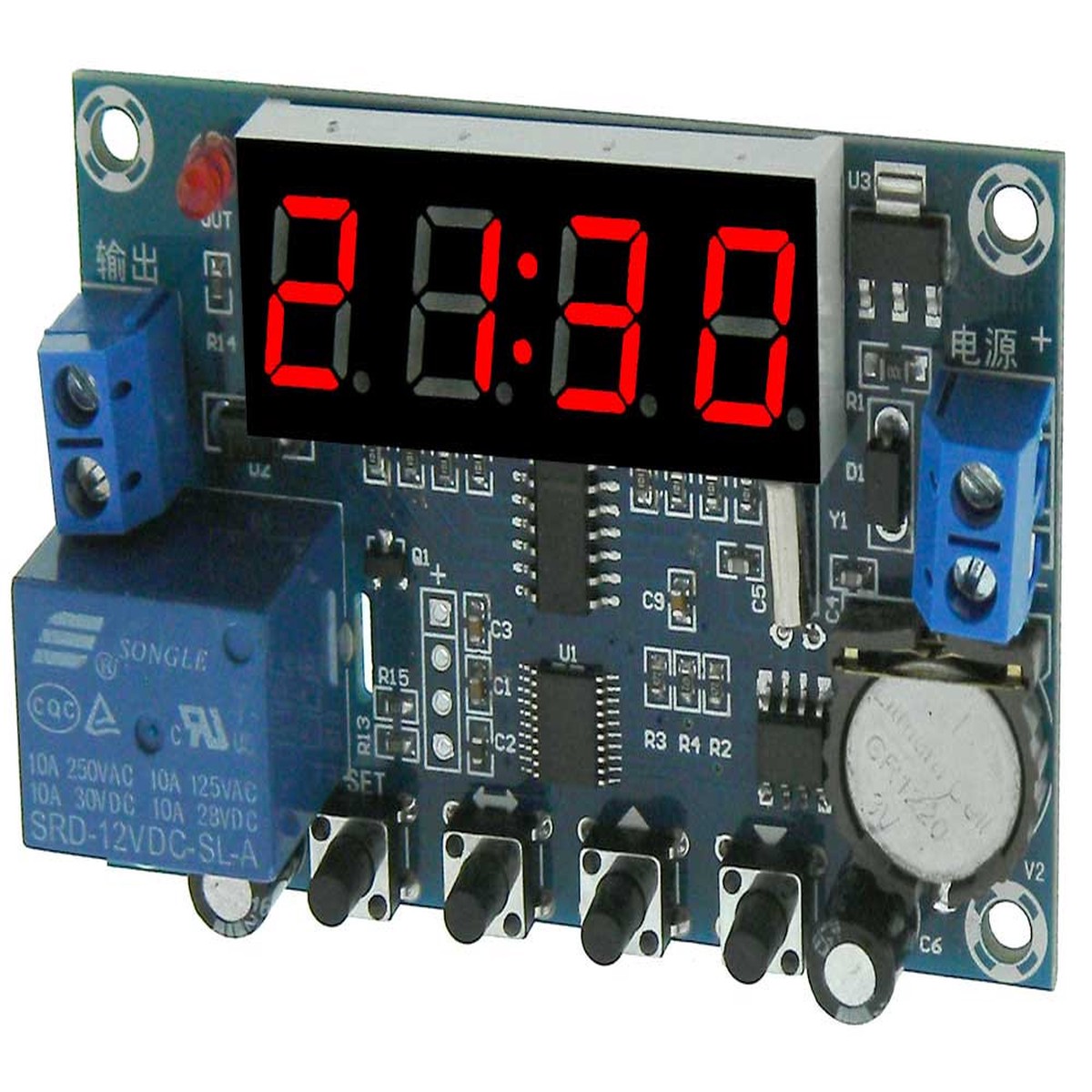

24-Hour Clock Timer, 3 Event

Description

24-Hour Clock Timer, 3 EventAdditional Notes:* Crystal Controlled, Adjustable 24Hour (No AM/PM) Clock/Timer that allows you to set up to 3 ON & OFF Periods of a SPST-N.O. Relay.* Retains Settings With Power Off (Internal Coin CR1220 Battery Supplied)* Note: Internal Battery Will Not Operate Relay or Display.* Power: 12 VoLt DC External @ <100mA Relay Energized* Accuracy: ~1 Second/24 Hour* Resolution: 1Minute* Contacts Rated: 10 Amp @ 250 Volt AC/30 Volt DC* LED Status Indicator* Display: 4 Digit + Colon, 15mm Height Red LED* Terminal Strip For Power And Relay Contacts* Dimensions (LxWxD): 2-3/4x 1-13/16x 7/8 MPJA33992 MI
