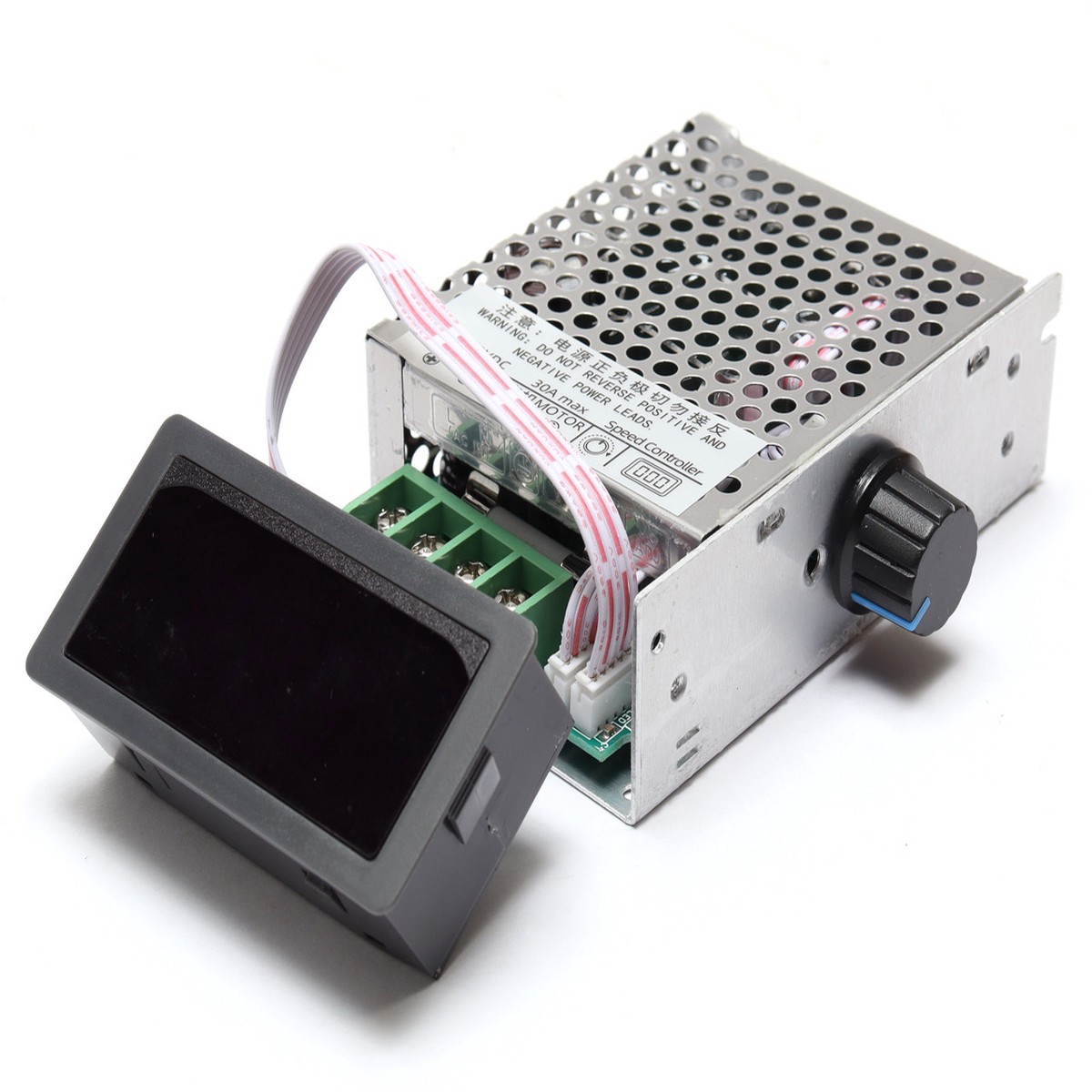

20A 12-80V DC Motor Speed Control & Display

Description

20A 12-80V DC Motor Speed Control & DisplayAdditional Notes: * Modular, enclosed, wide range control with “Relative Speed” Display. * Uses PWM to vary the speed of DC motors. * On-board adjustment pot. * Terminal strip for power & Motor connections.* DO NOT REVERSE POWER CONNECTIONS* Input: 12- 80VDC* Output: 20A max. 30A Surge* Recommended: 12V/250W, 24V/350W, 48V/500W* Range: 0%-100% of rated motor RPM* Frequency: 21KHz.* Display: 3 Digit 0.56″ LED.* Pigtail: 7in.* Range: 0-100% of Motor Max Speed* 25 = 25% 75= 75% of RPM* Display Cutout: L: 2-7/8″ W: 1-9/16″* Display: L: 3-1/8″ W: 1-11/16″ D: 1-1/8″* Module: L: 4-3/8 W: 3-3/4 O/A H: 1-3/8MPJA35759 MD
